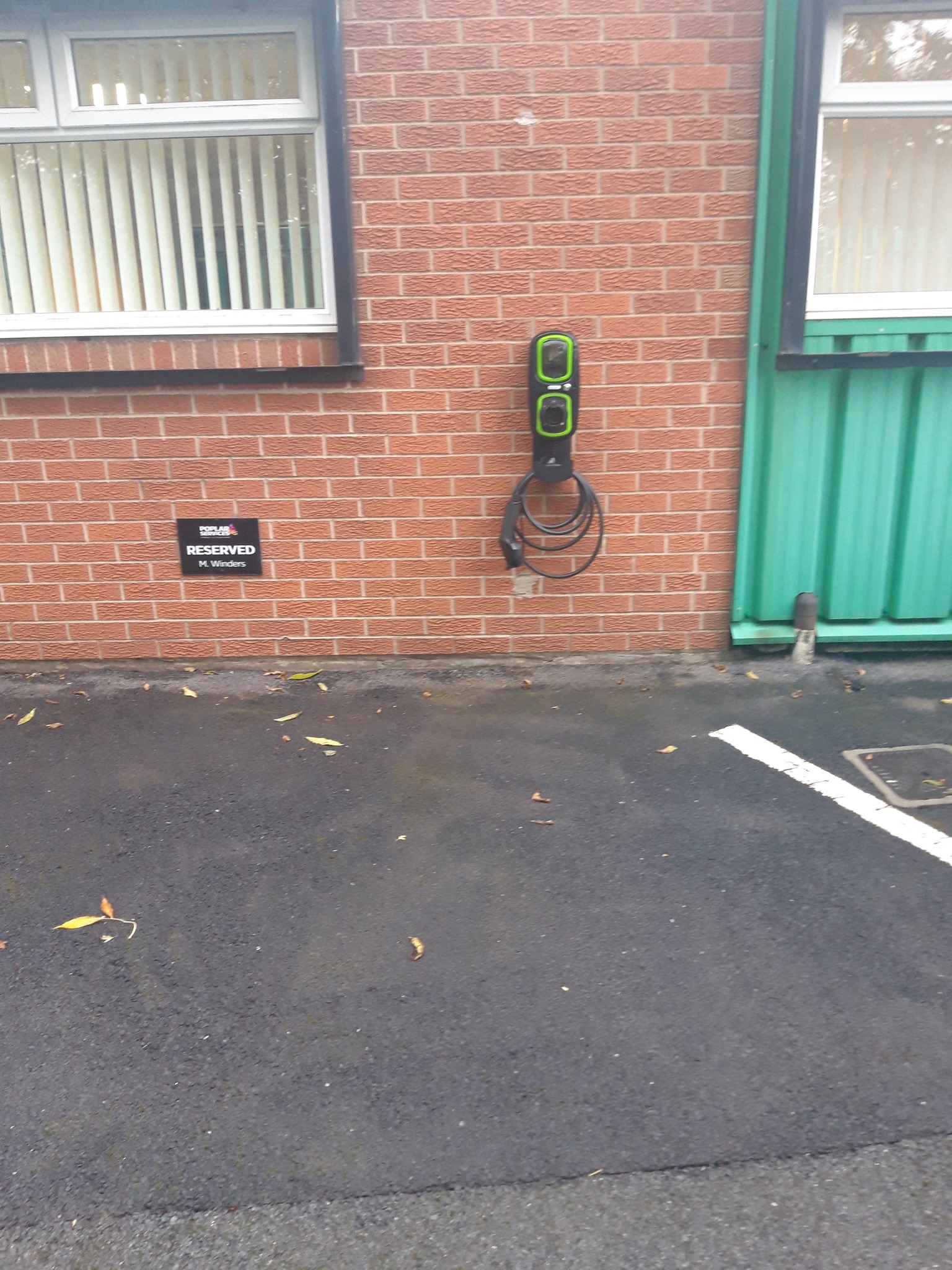

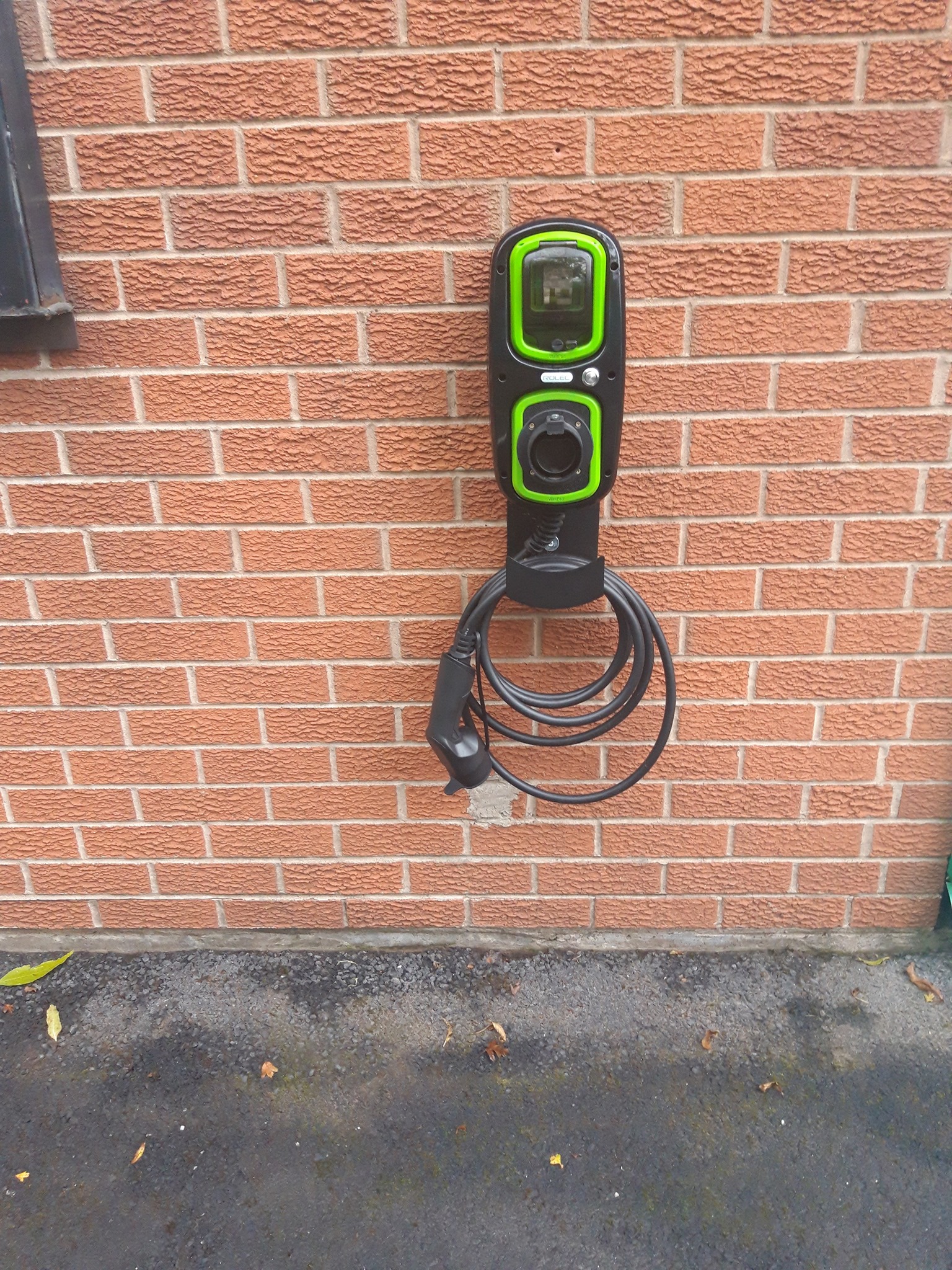

Electric car charger point supply. We also install into position car charger point and associated switch gear to control supply points for charger points.

Electric car charger point supply. We also install into position car charger point and associated switch gear to control supply points for charger points.

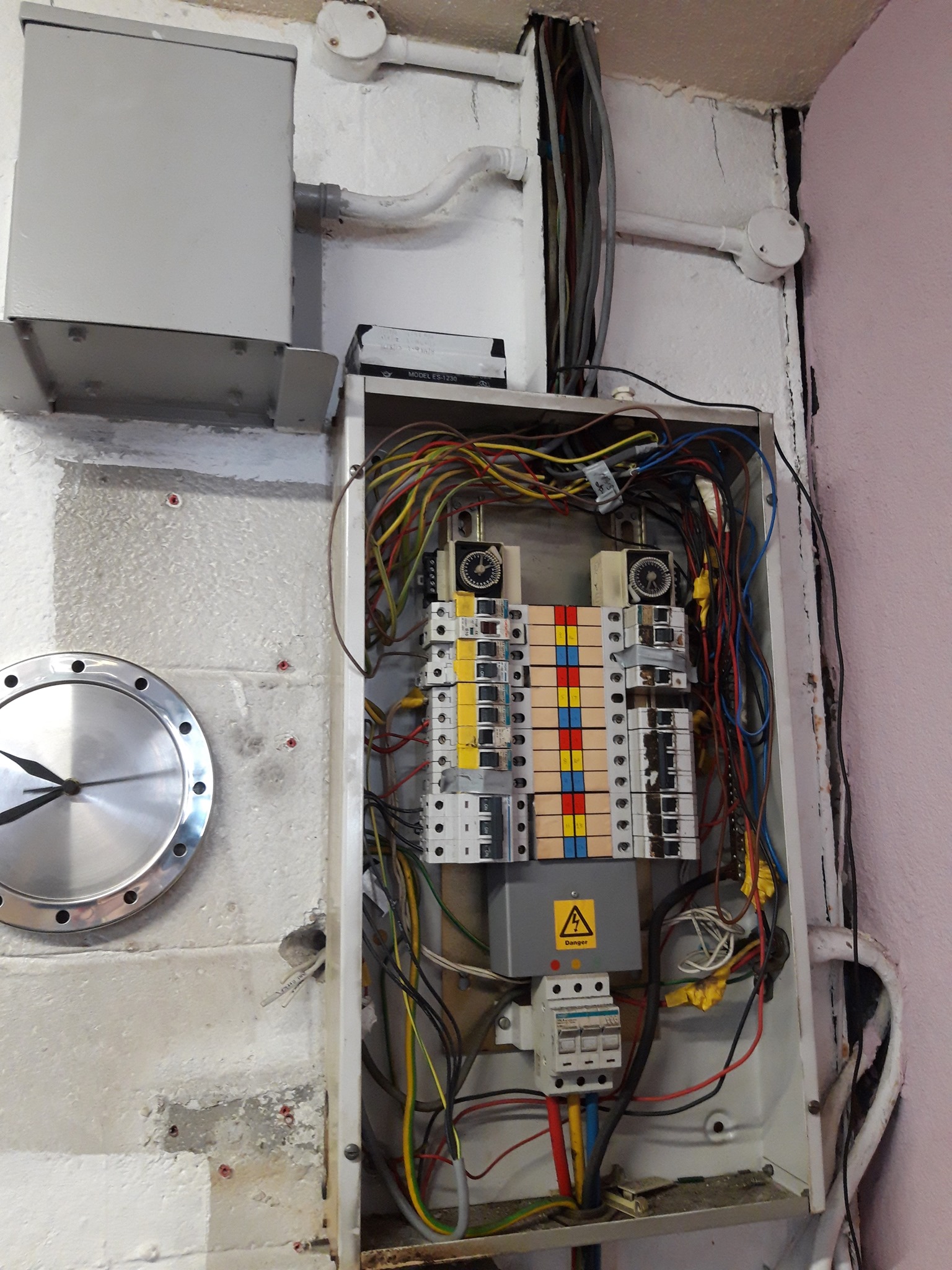

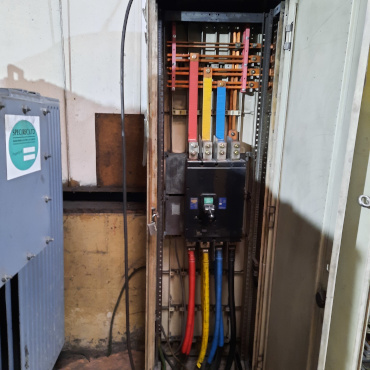

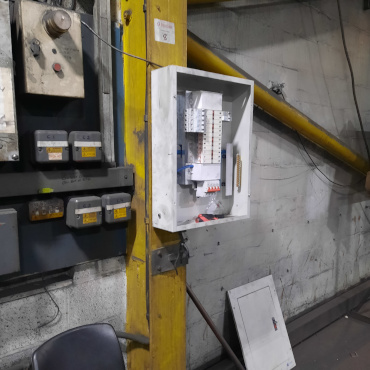

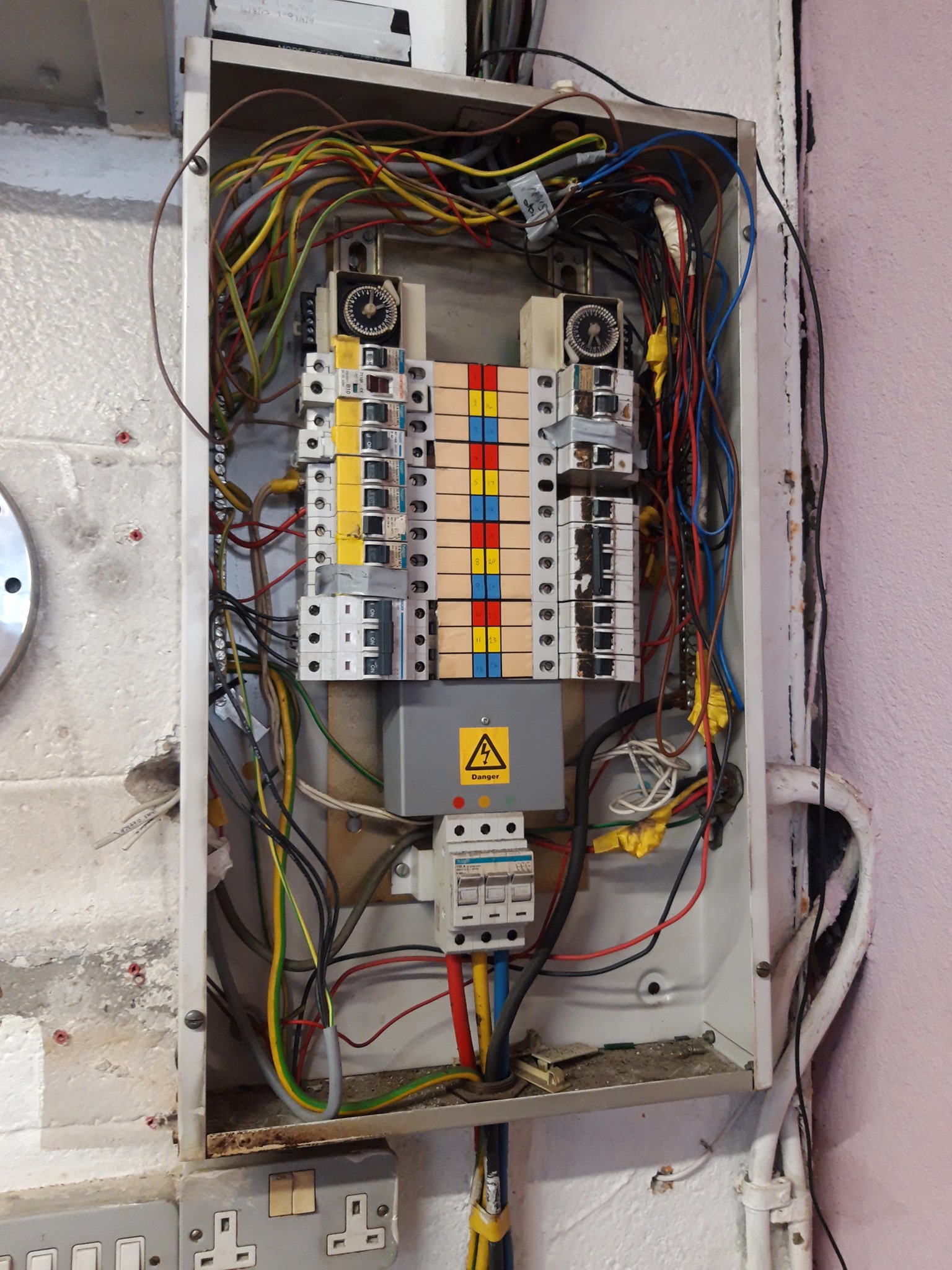

Initial photograph for all existing board.

Existing 3 phase board, which has no spare ways available for expansion, initial photograph taken, to replace this board with a new updated 8 way Hager 3 phase fuse board to allow for expansion, carried out for local customer.

Existing 3 phase board, which has no spare ways available for expansion, initial photograph taken, to replace this board with a new updated 8 way Hager 3 phase fuse board to allow for expansion, carried out for local customer.

Initial photograph for all existing board.

Existing 3 phase board, which has no spare ways available for expansion, initial photograph taken, to replace this board with a new updated 8 way Hager 3 phase fuse board to allow for expansion, carried out for local customer.

Initial photograph for all existing board.

Existing 3 phase board, which has no spare ways available for expansion, initial photograph taken, to replace this board with a new updated 8 way Hager 3 phase fuse board to allow for expansion, carried out for local customer.

Initial photograph for all existing board.

Existing 3 phase board, which has no spare ways available for expansion, initial photograph taken, to replace this board with a new updated 8 way Hager 3 phase fuse board to allow for expansion, carried out for local customer.

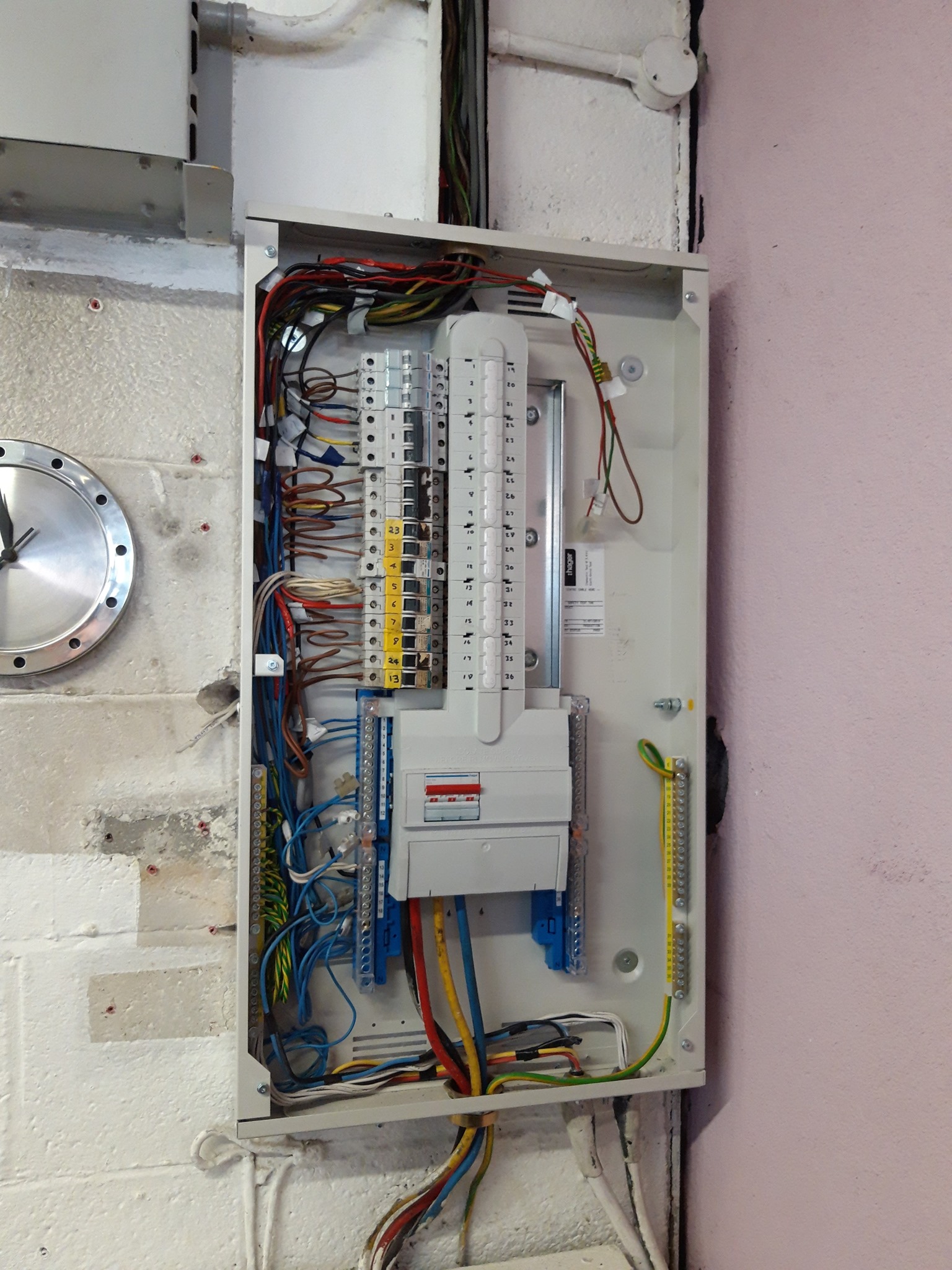

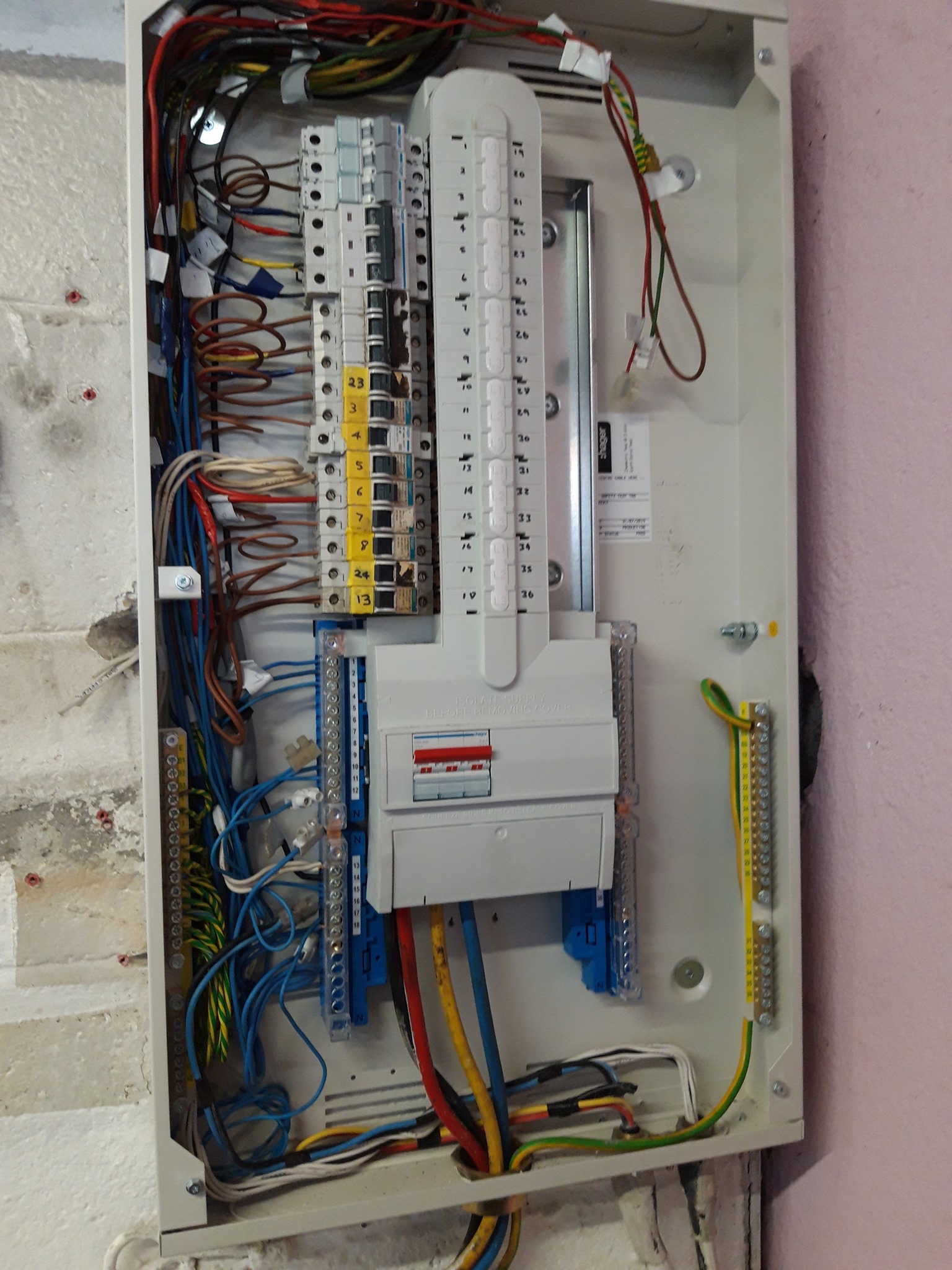

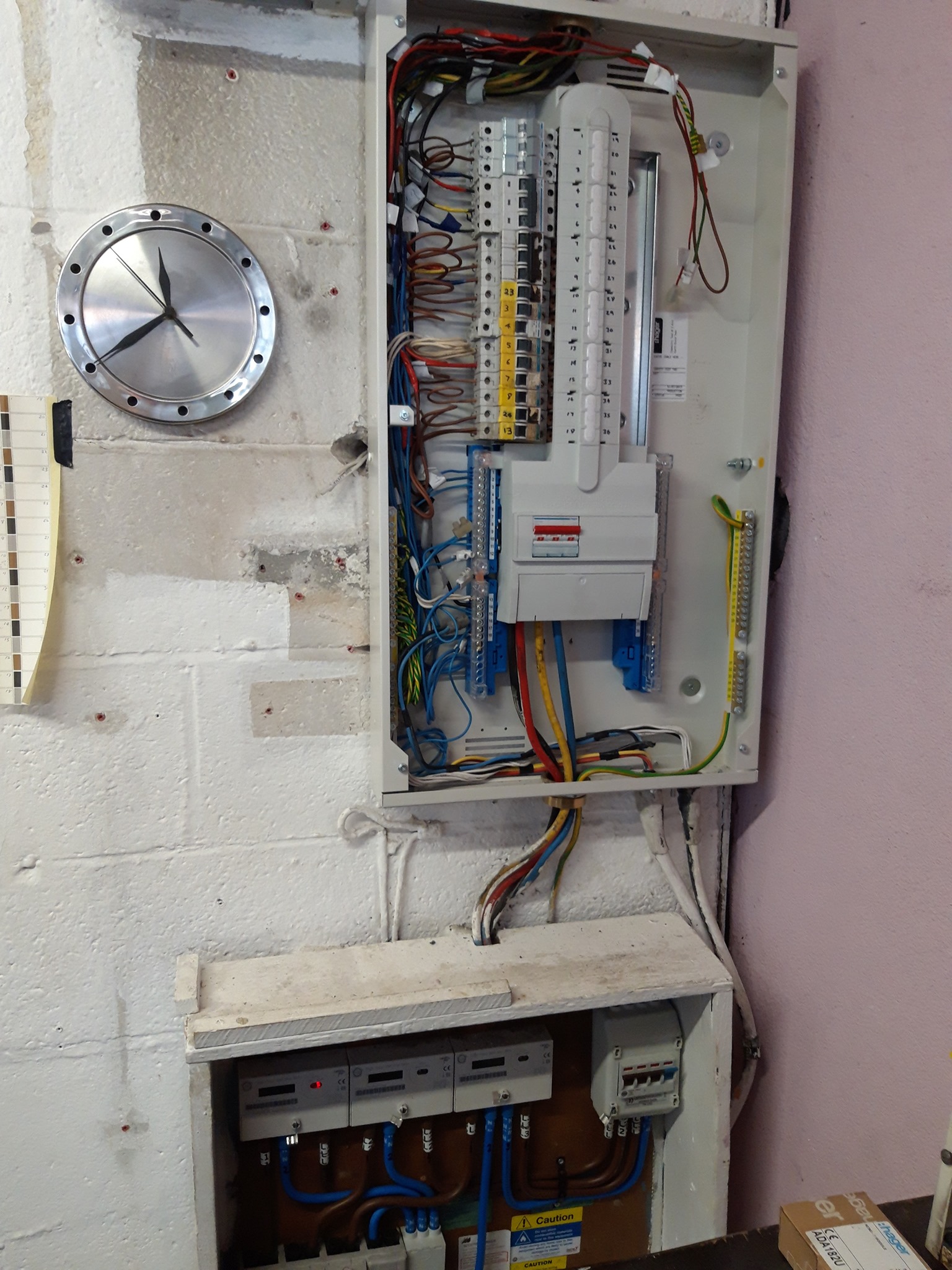

Picture shows completed board, new Hager 8 way fuse board, with new 100 amp triple pole switch installed and new breakers as needed, also RCBO's as required, all satisfactory on completion.

Picture shows completed board, new Hager 8 way fuse board, with new 100 amp triple pole switch installed and new breakers as needed, also RCBO's as required, all satisfactory on completion.

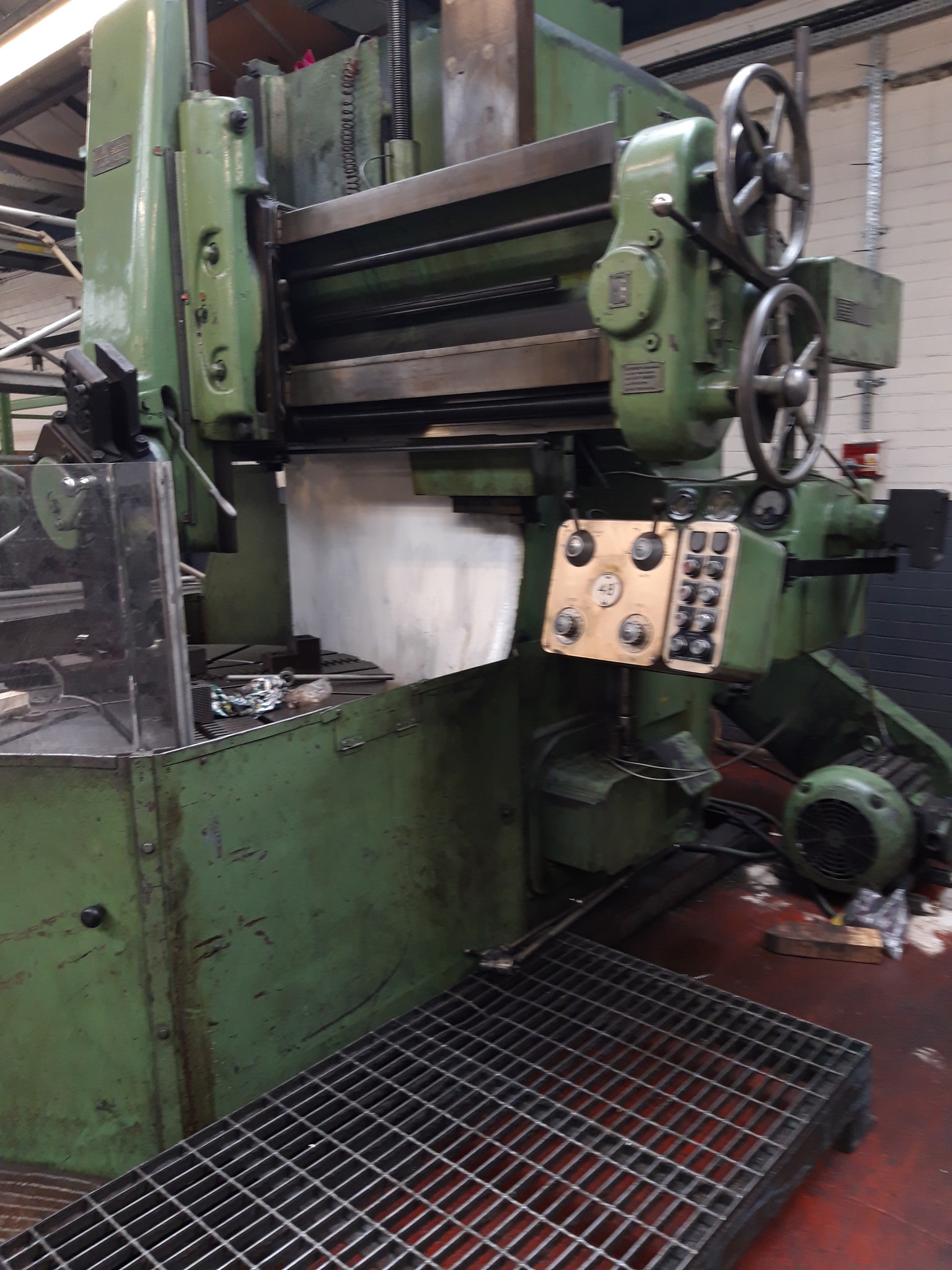

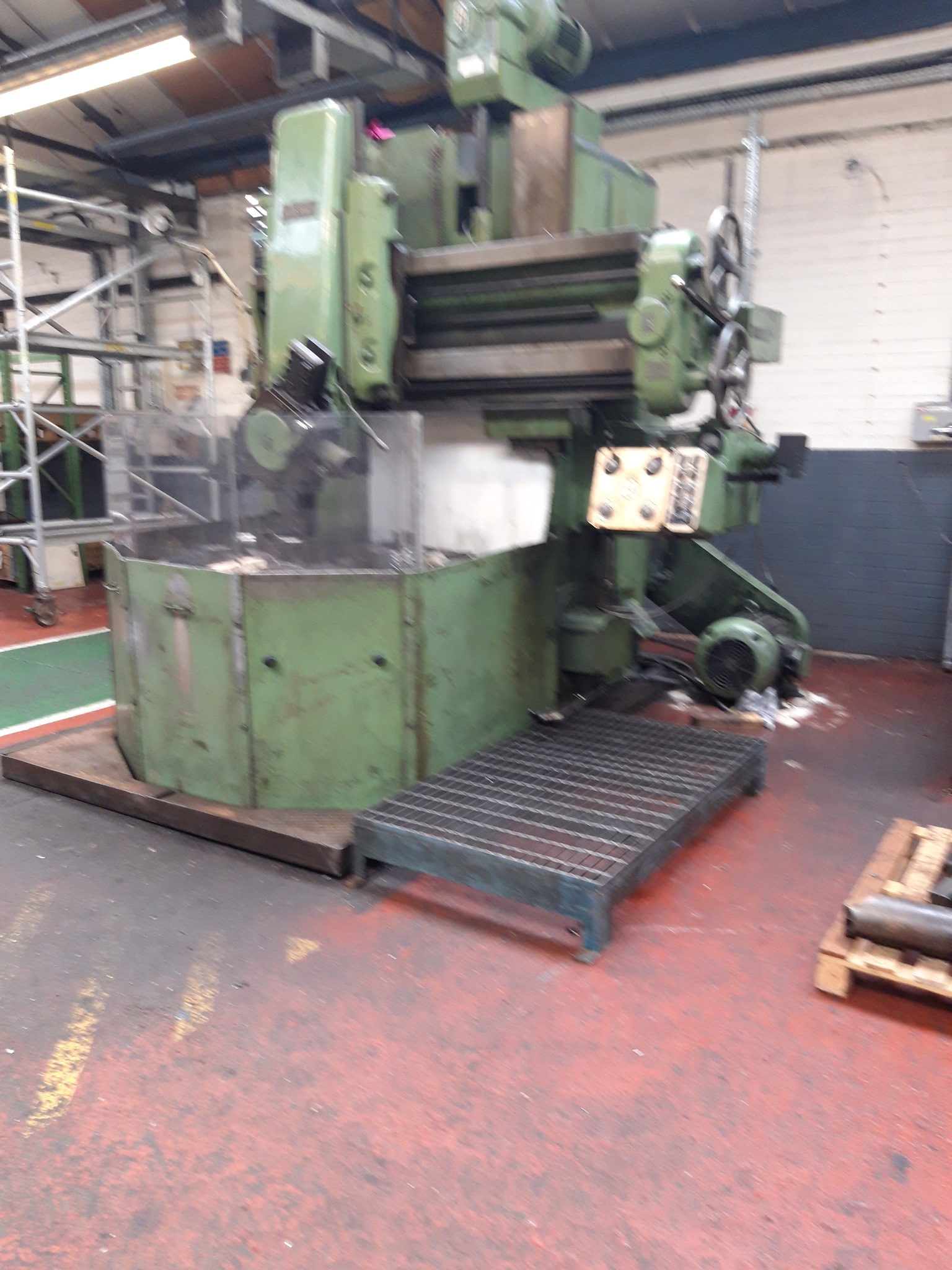

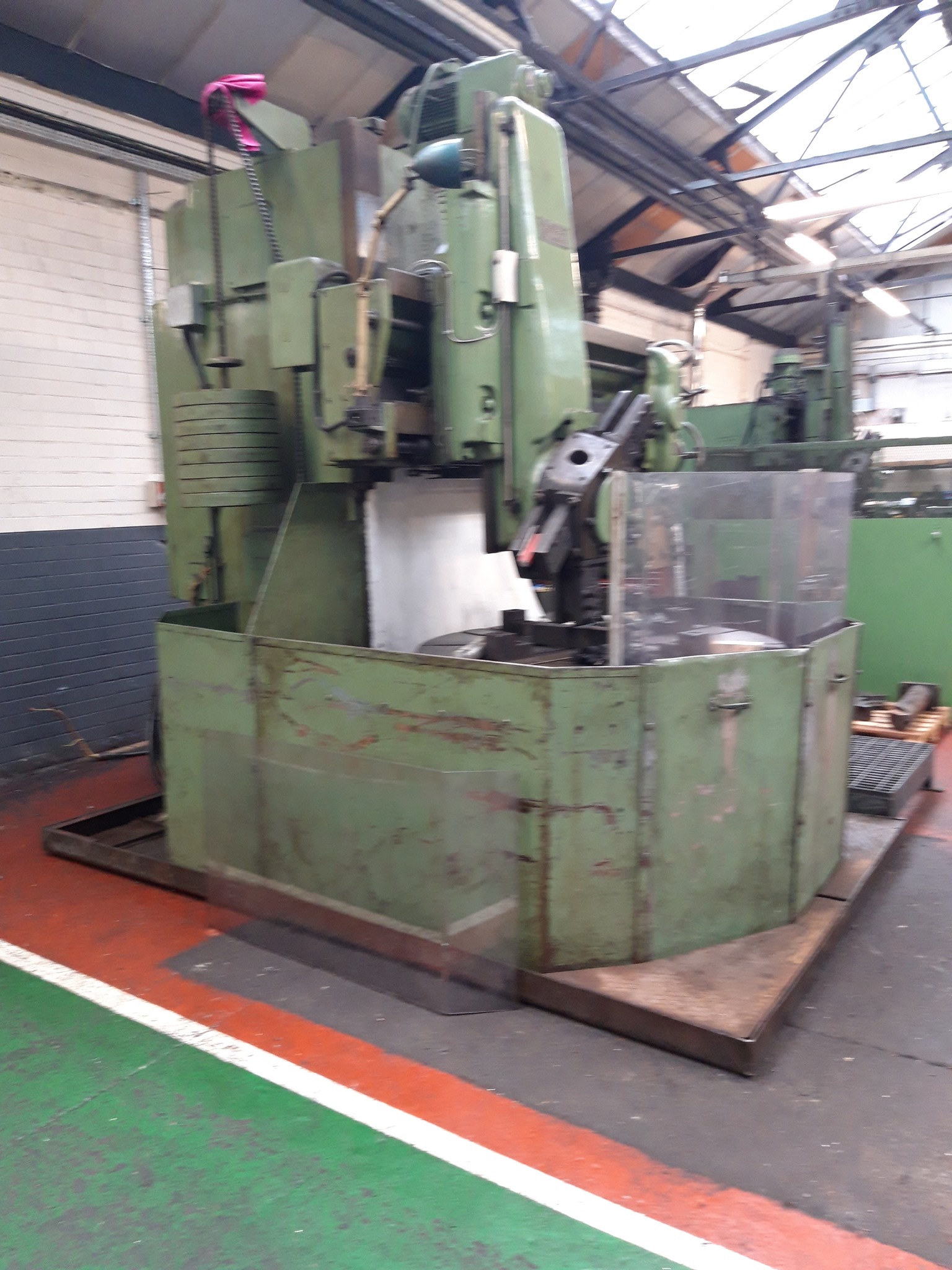

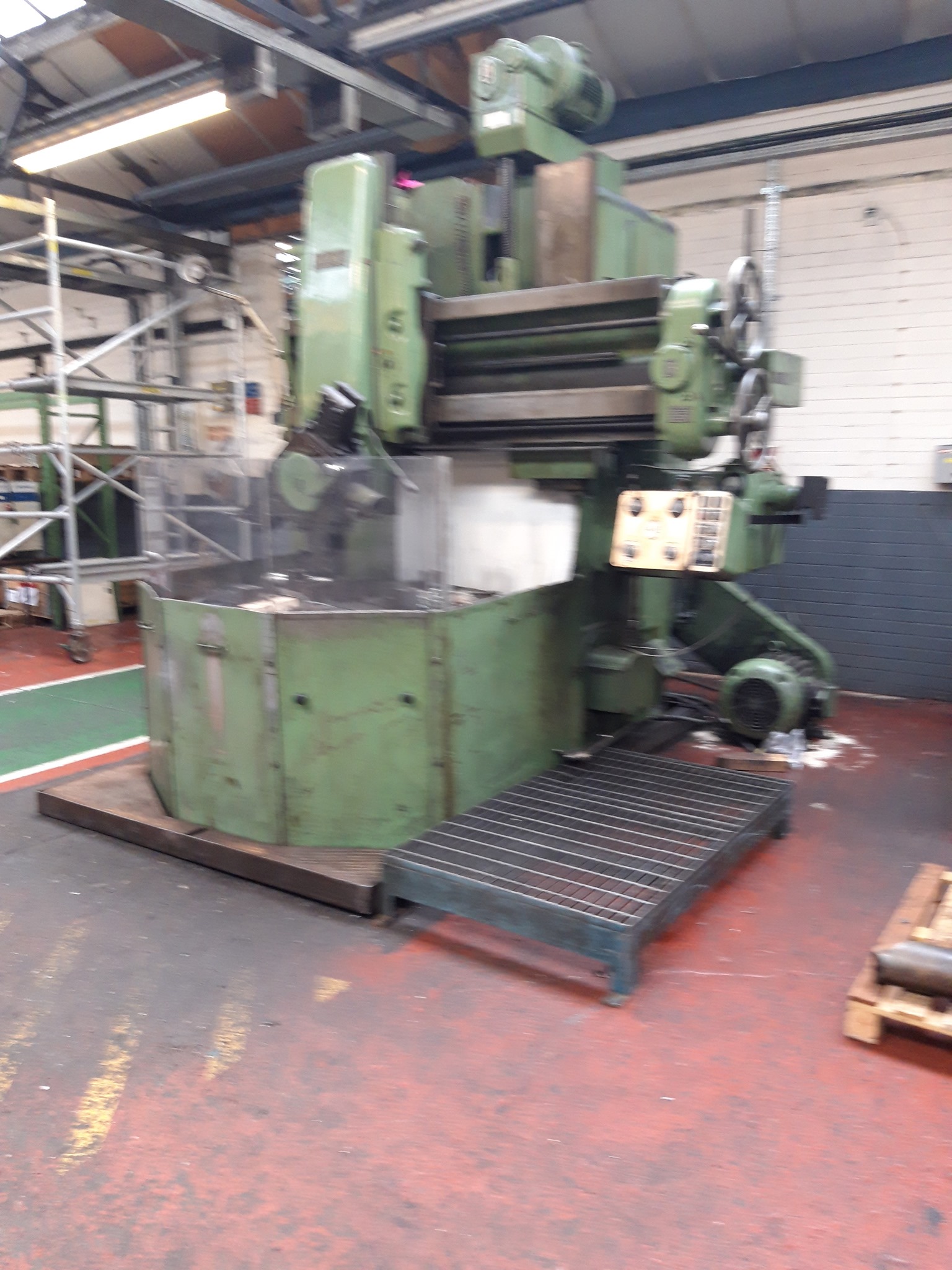

Shown on the left is a typical machine installed, I.e vertical borer, we installed the supply cable to feed the machine and switch gear to control it.

Shown on the left is a typical machine installed, I.e vertical borer, we installed the supply cable to feed the machine and switch gear to control it.

Shown on the left is a typical machine installed, I.e vertical borer, we installed the supply cable to feed the machine and switch gear to control it.

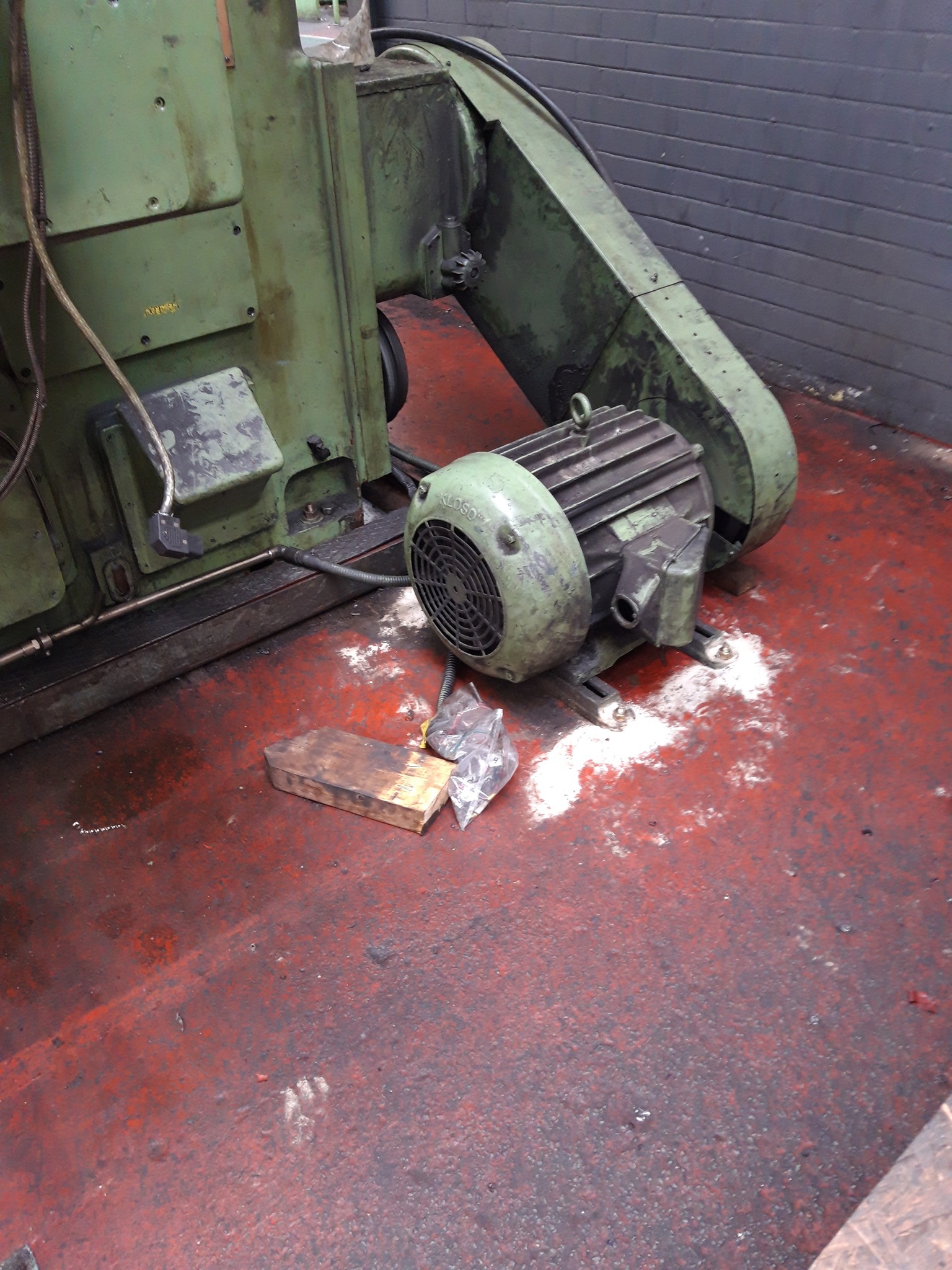

Star delta drive motor installed, on close inspection of this motor before the supply was turned on, the impedance readings was carried out which show the impedance was unbalanced on 3 winding's, fault was located and repairs carried out, as anyone with experience with star delta motors, as we have will know how critical it is that motor winding's are balanced and no unbalanced winding's are in the circuit, as this will cause the motor to overheat and eventually burn out, the fault was rectified with our expert knowledge on motors and all was running satisfactory on completion.

Shown on the left is a typical machine installed, I.e vertical borer, we installed the supply cable to feed the machine and switch gear to control it.

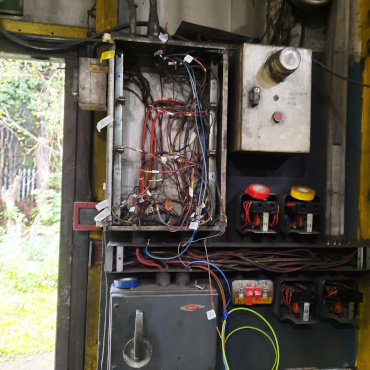

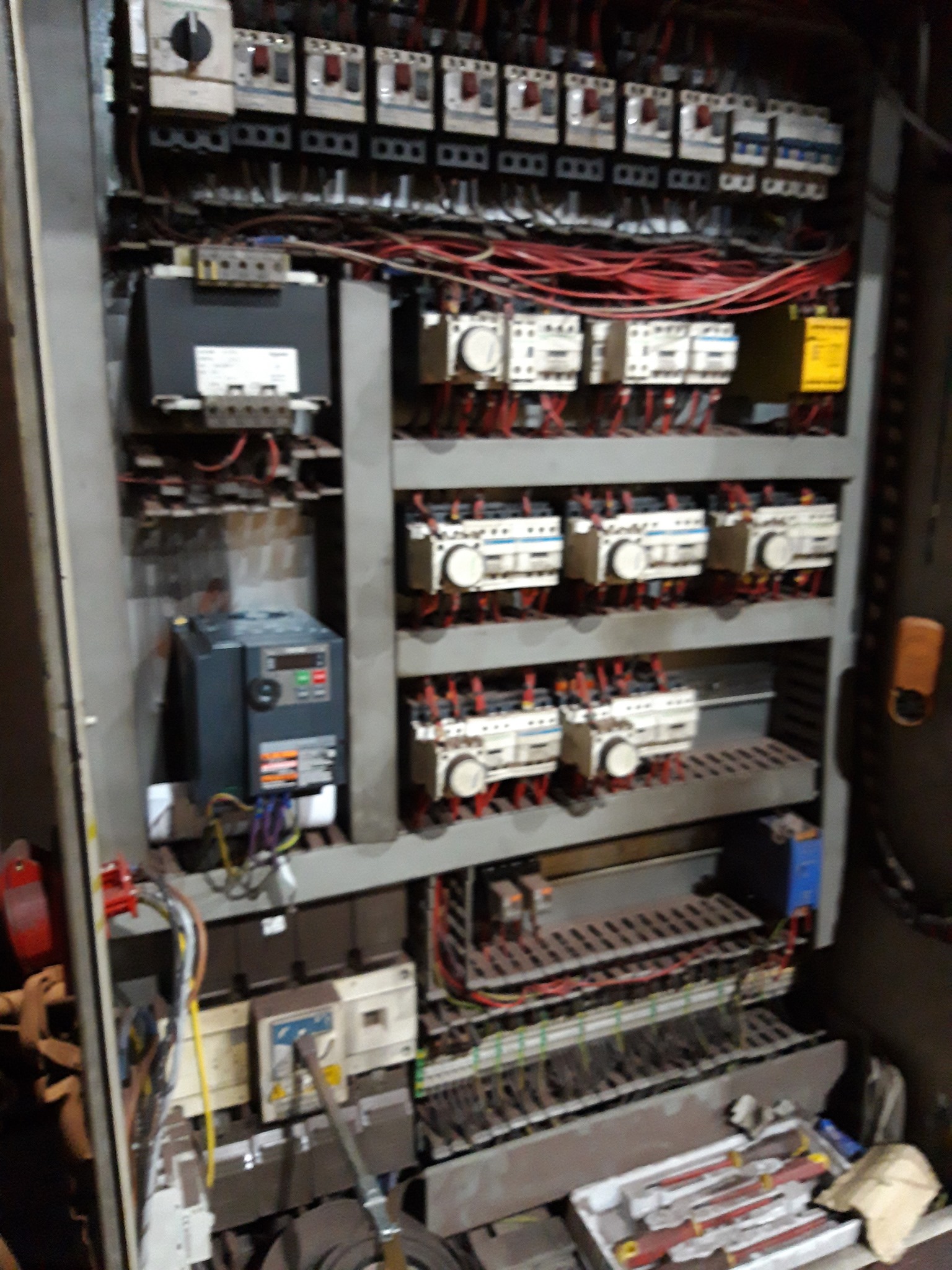

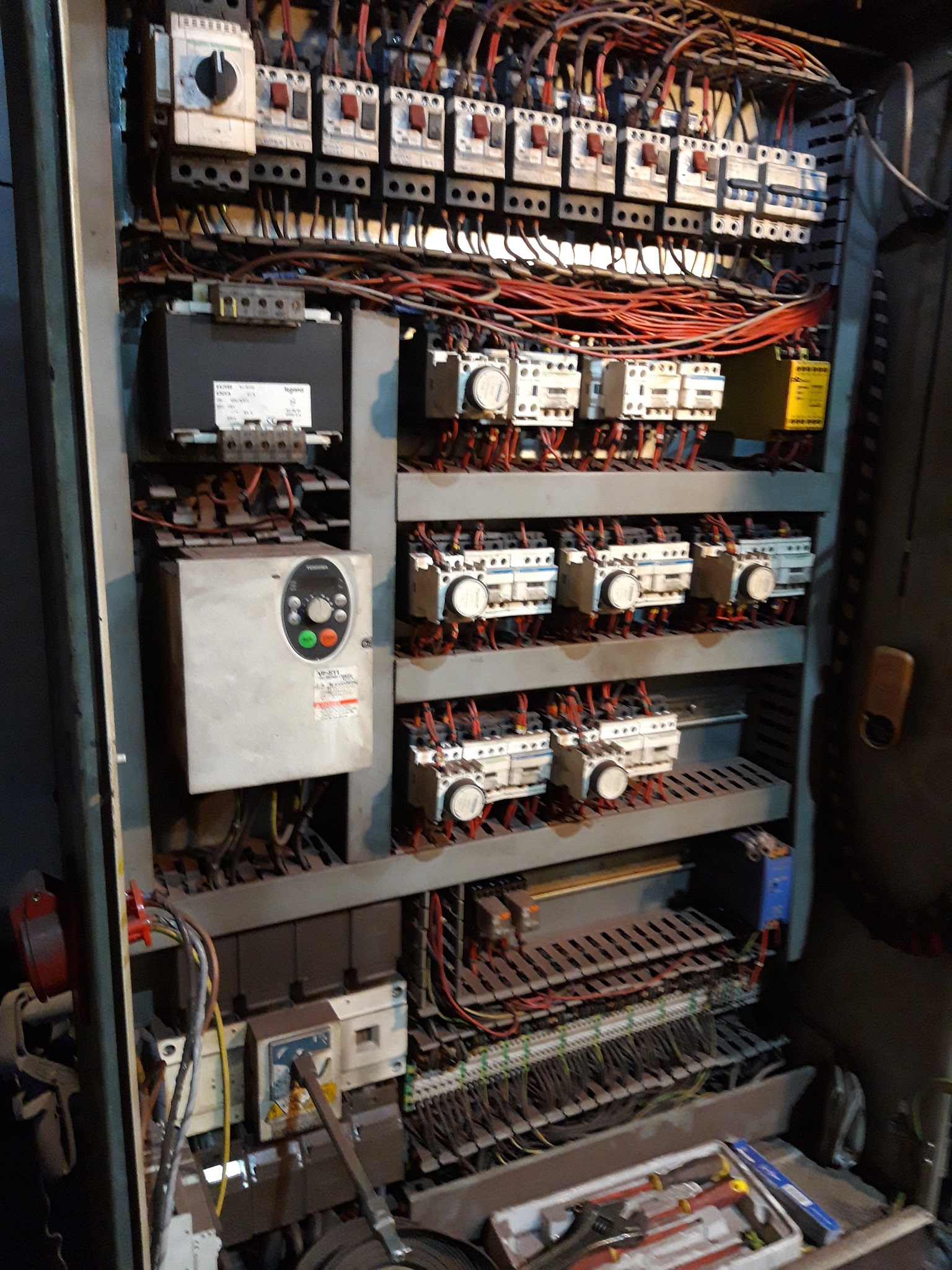

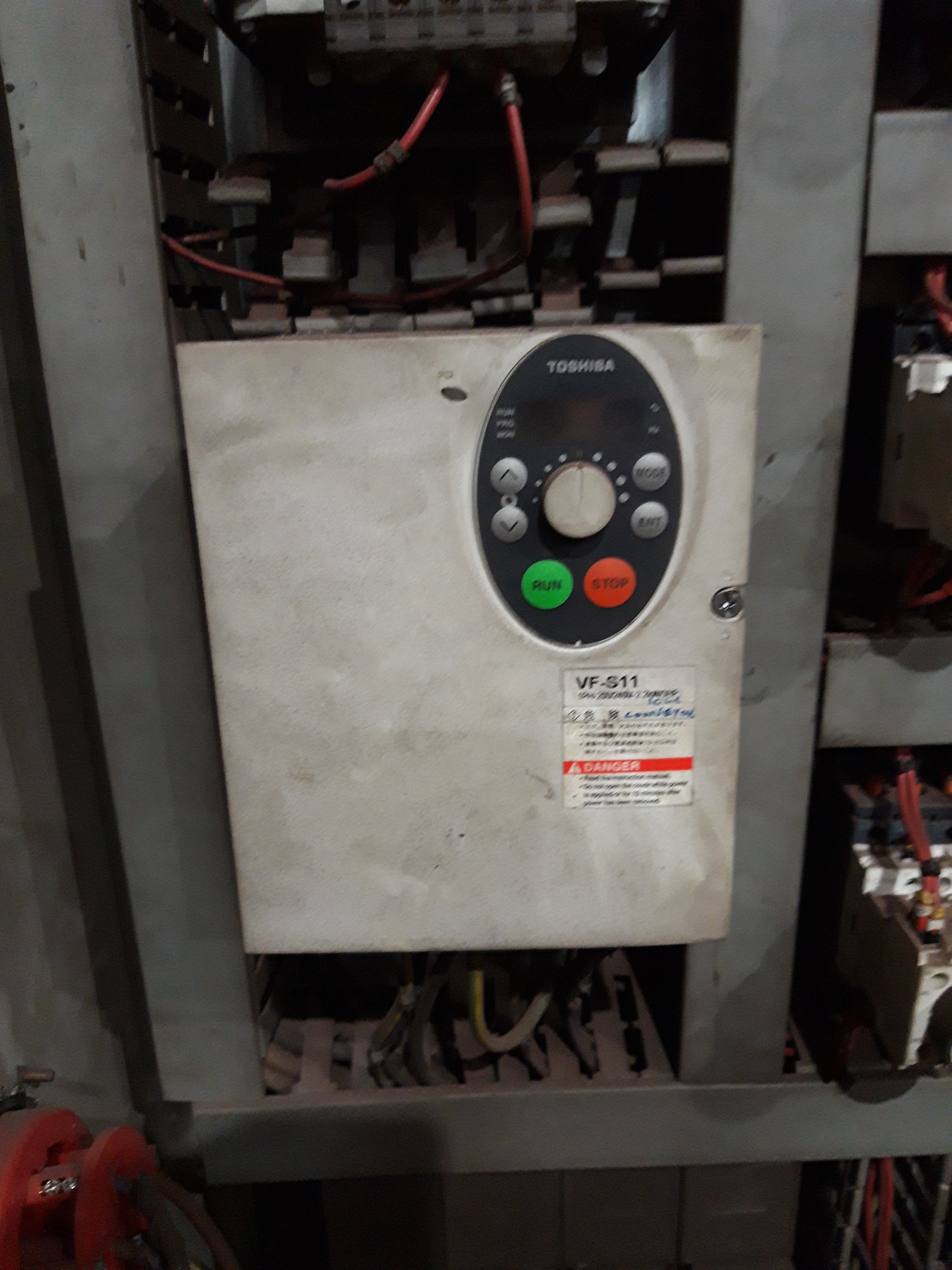

3 phase variable speed drive unit out of action not working.

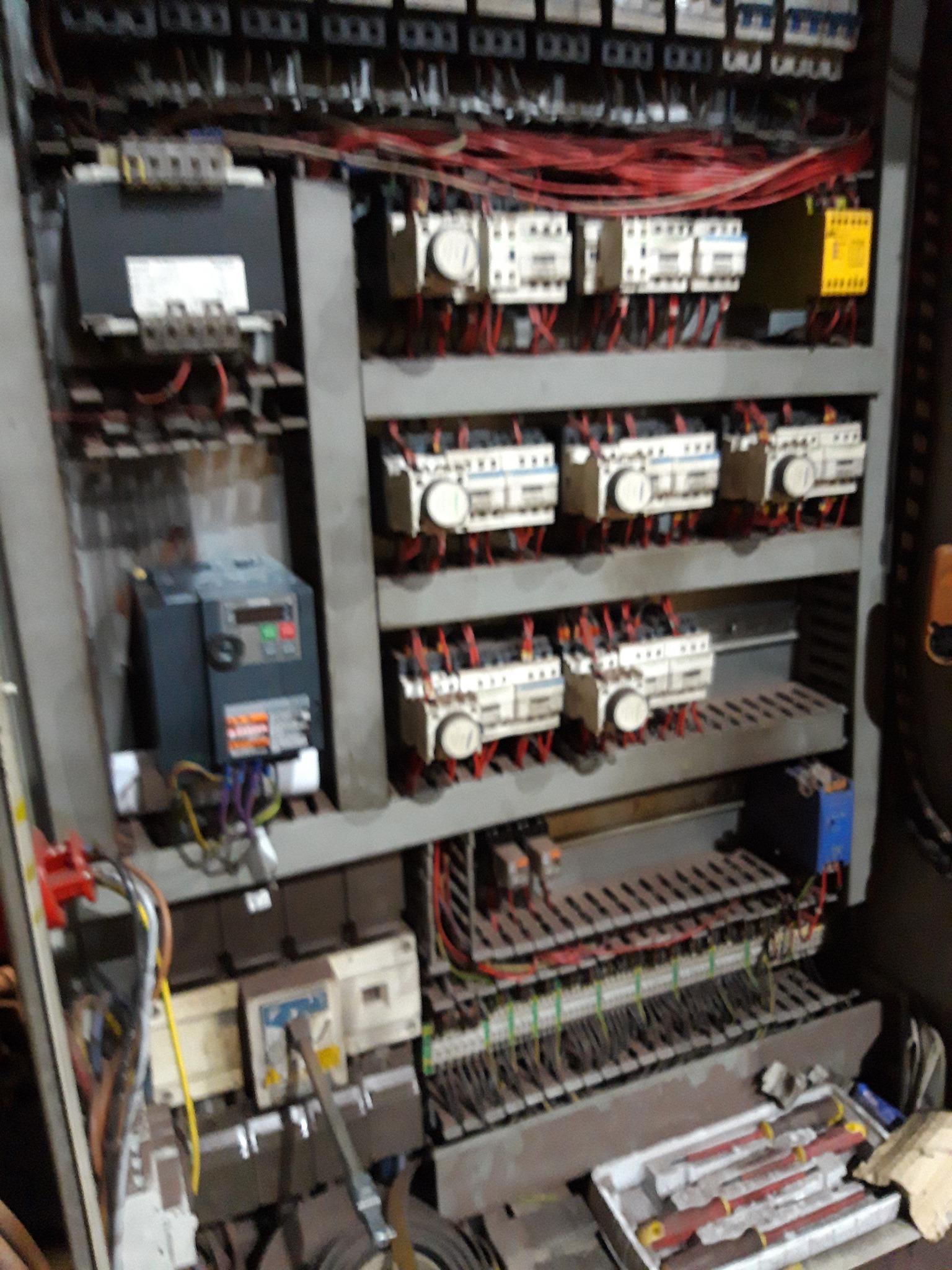

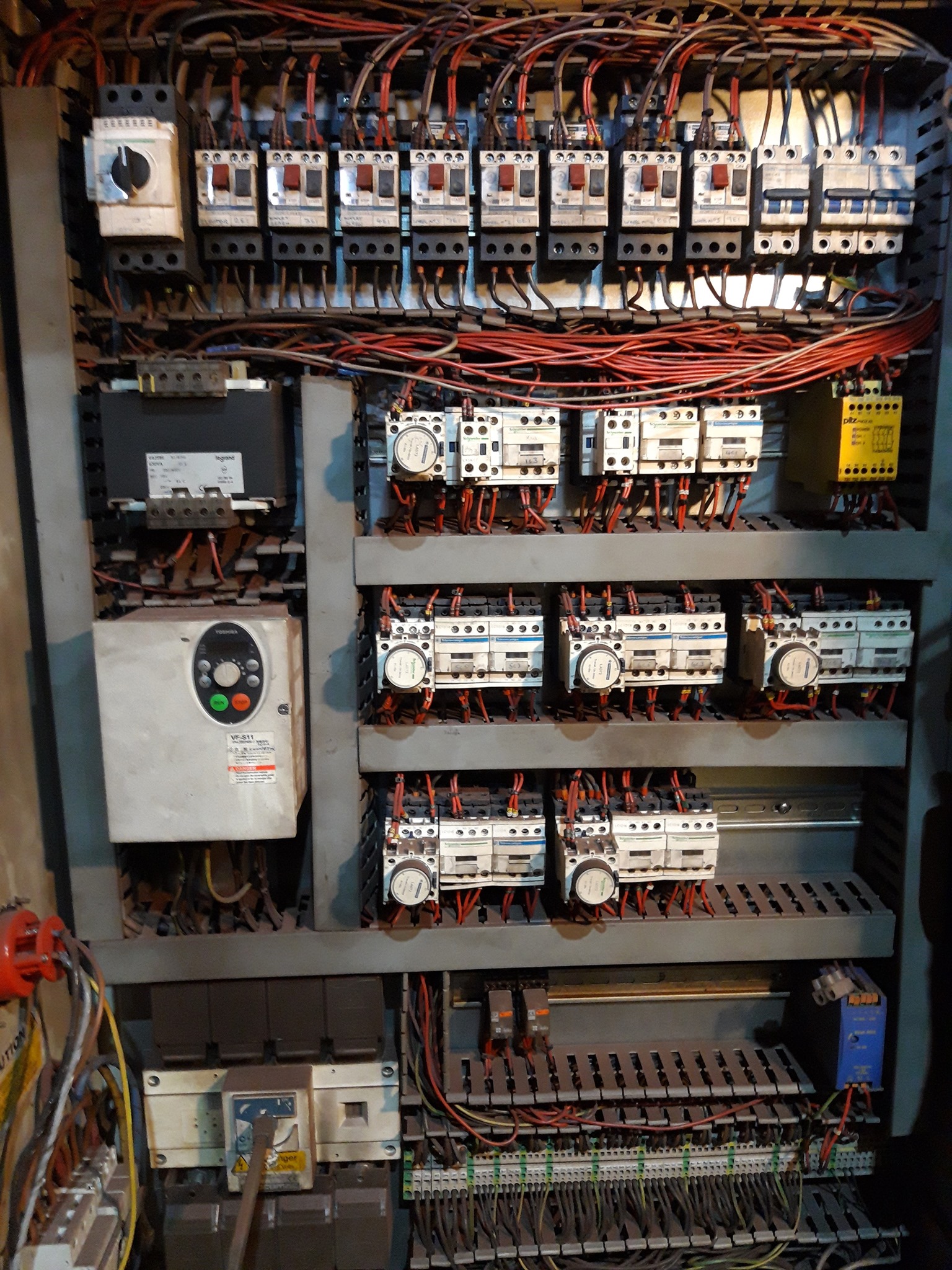

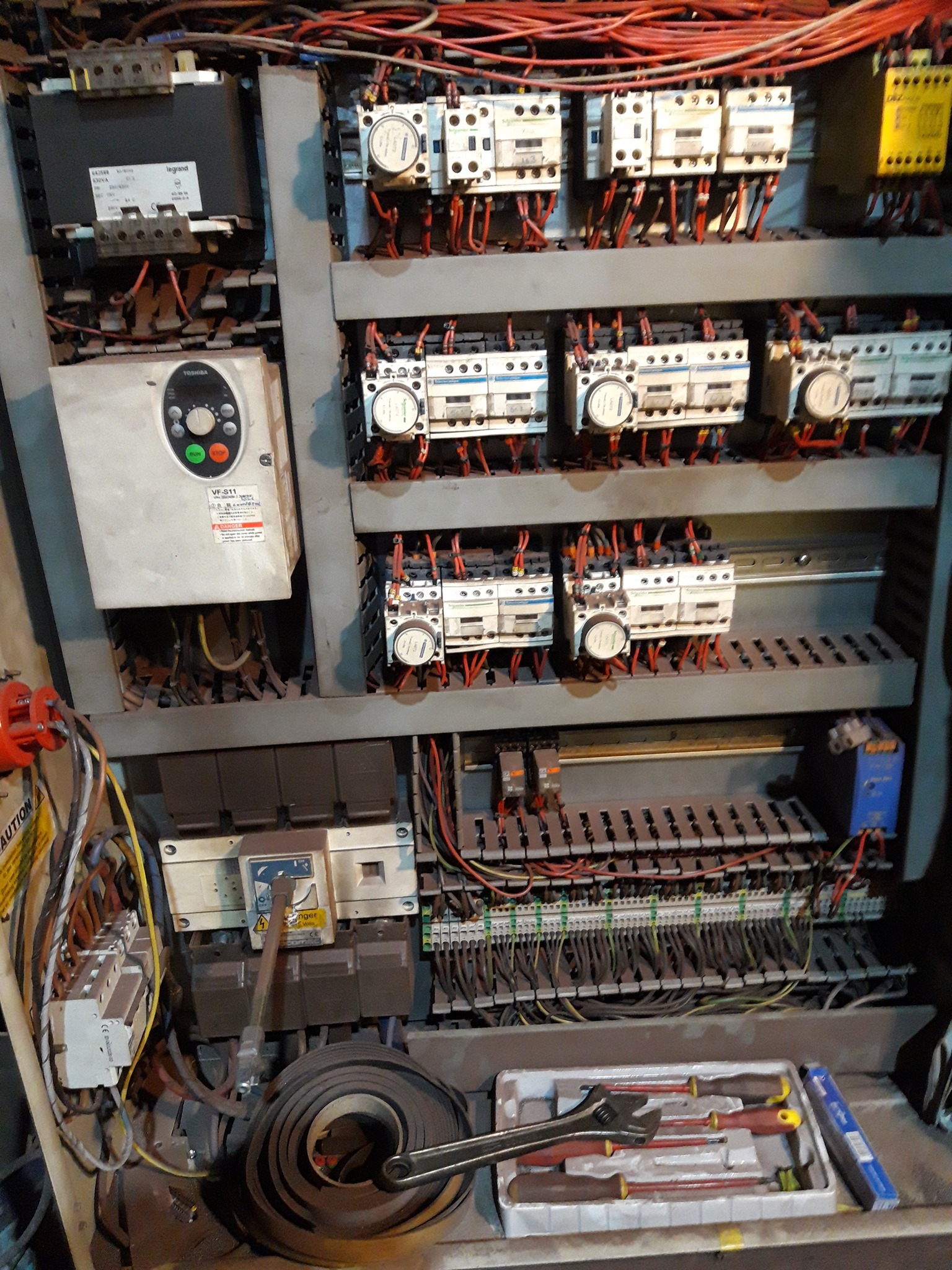

Control board holding drive.

Control board holding drive.

Control board holding drive.

Control board holding drive.

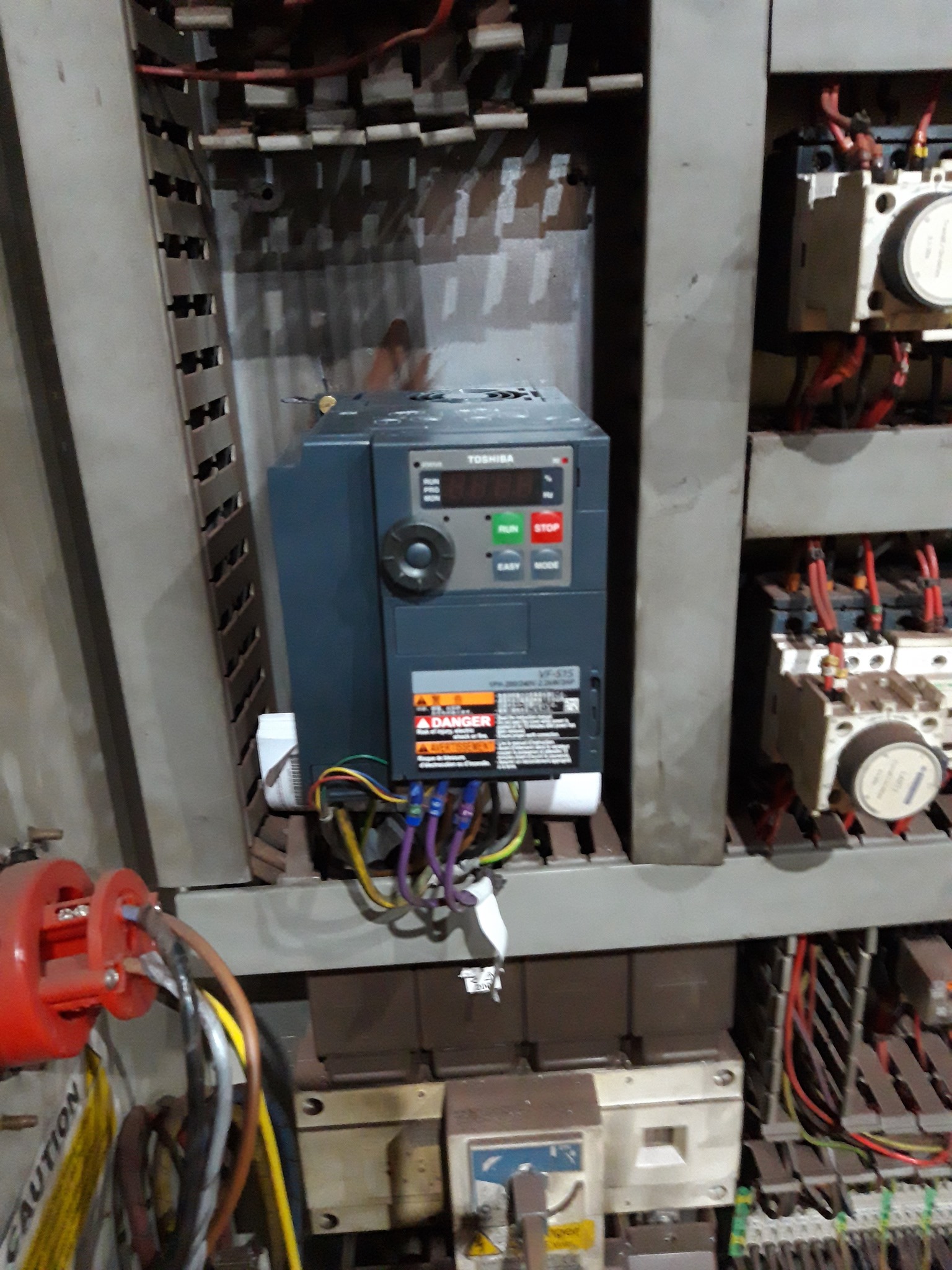

New installed drive unit for variable speed 3 phase motor, this was a breakdown service, which held up production on the factory, the old Toshiba drive unit was taken out, all terminations noted down for re-installation of new drive unit, an identical drive unit was sought after, which meant phone calls to locate the drive unit in the UK, the new drive unit was installed, but the potentiometer was not functioning correctly and a new one supplied had to be installed, this was done so in a professional manner, but difficulties was still found with internal links with the new drive, so therefore then phone calls were made and contact made with Toshiba in Germany and alterations to links in the drive was taken out with use of 1 to 1 communication with an engineer in Germany all carried out as fast as possible and in a professional manner.

New installed drive unit for variable speed 3 phase motor, this was a breakdown service, which held up production on the factory, the old Toshiba drive unit was taken out, all terminations noted down for re-installation of new drive unit, an identical drive unit was sought after, which meant phone calls to locate the drive unit in the UK, the new drive unit was installed, but the potentiometer was not functioning correctly and a new one supplied had to be installed, this was done so in a professional manner, but difficulties was still found with internal links with the new drive, so therefore then phone calls were made and contact made with Toshiba in Germany and alterations to links in the drive was taken out with use of 1 to 1 communication with an engineer in Germany all carried out as fast as possible and in a professional manner.

New installed drive unit for variable speed 3 phase motor, this was a breakdown service, which held up production on the factory, the old Toshiba drive unit was taken out, all terminations noted down for re-installation of new drive unit, an identical drive unit was sought after, which meant phone calls to locate the drive unit in the UK, the new drive unit was installed, but the potentiometer was not functioning correctly and a new one supplied had to be installed, this was done so in a professional manner, but difficulties was still found with internal links with the new drive, so therefore then phone calls were made and contact made with Toshiba in Germany and alterations to links in the drive was taken out with use of 1 to 1 communication with an engineer in Germany all carried out as fast as possible and in a professional manner.

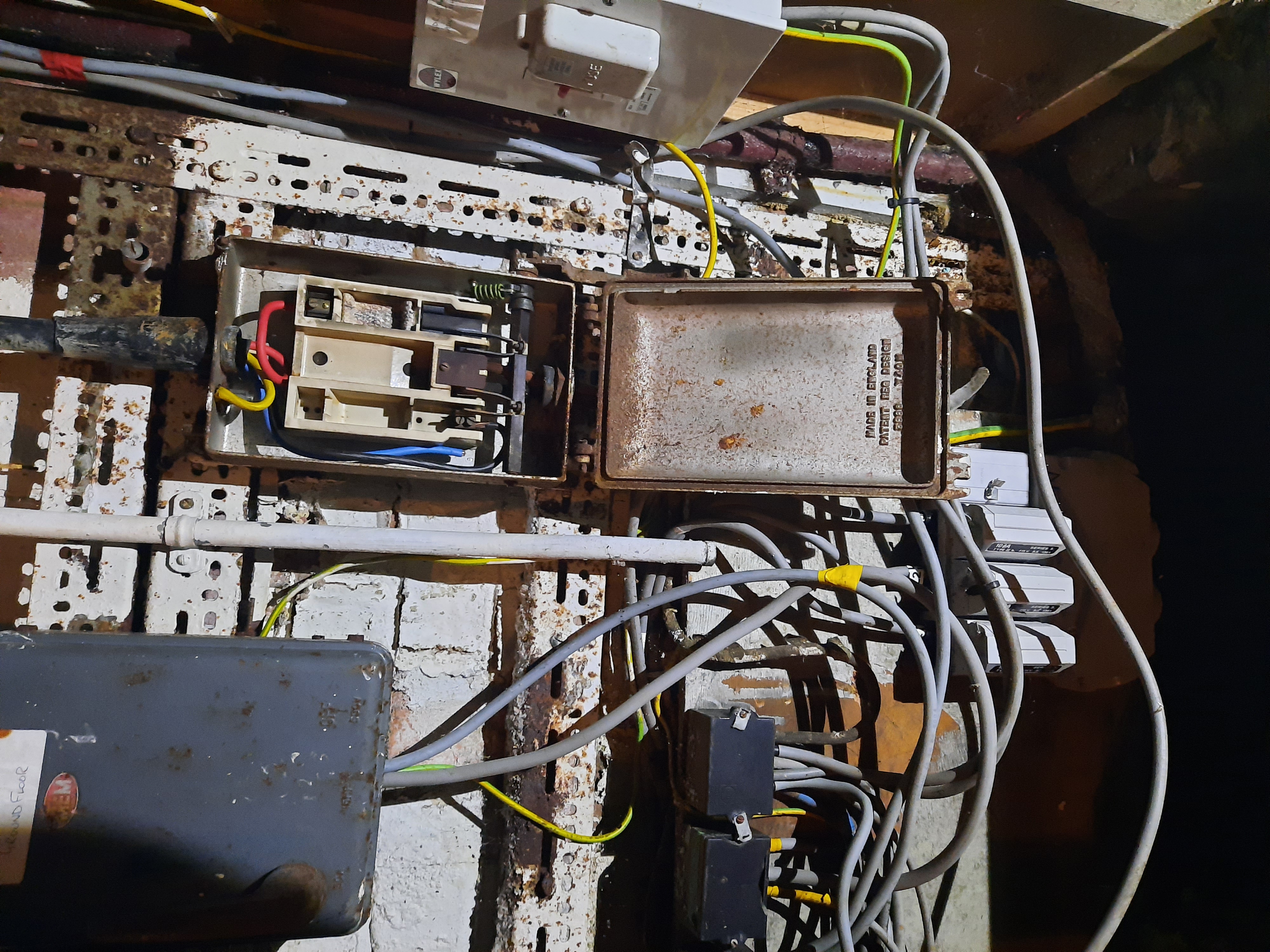

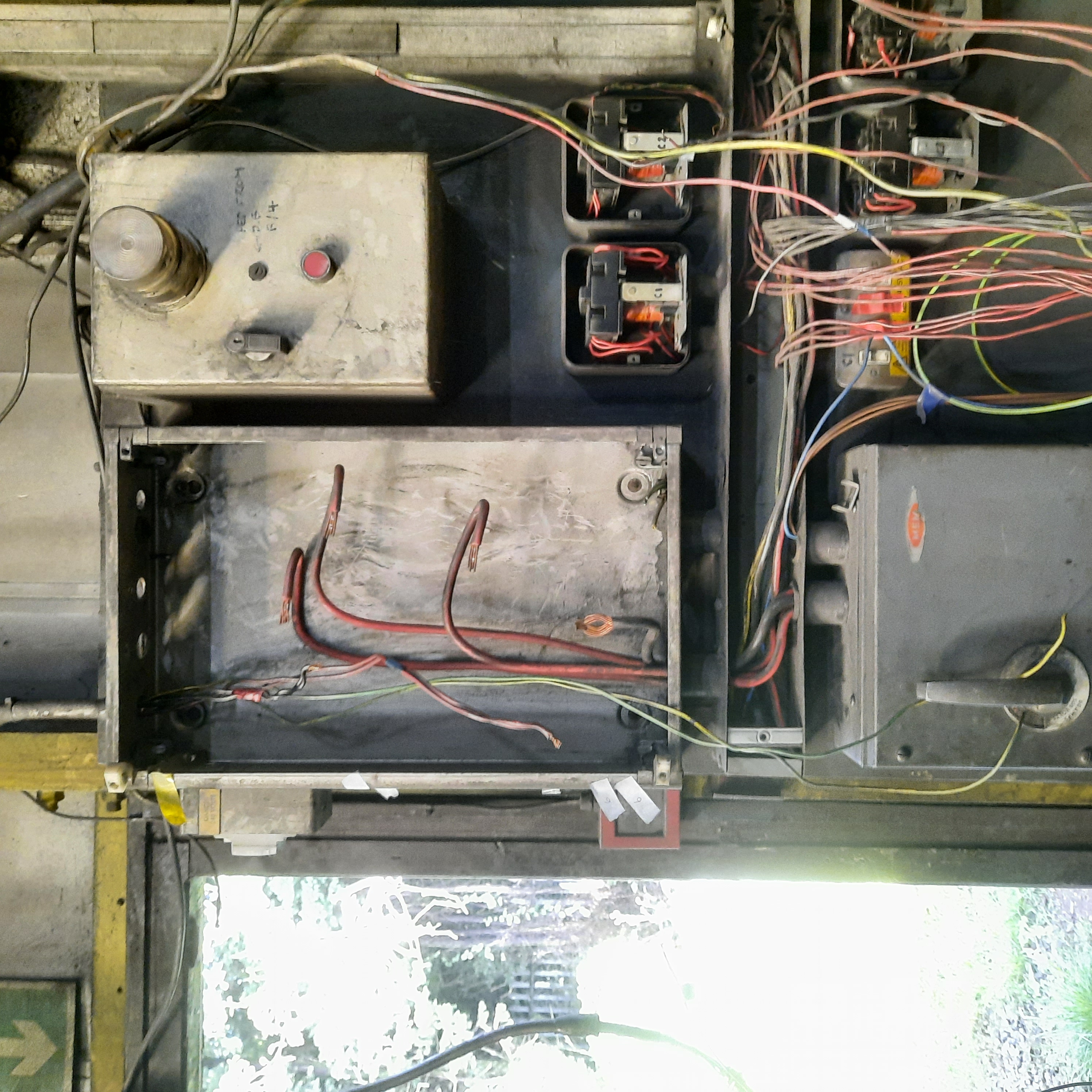

60 amp double pole switch, 1 phase of the switch has failed, so loss of capacity supply for office complex, new isolator required and please note the switch is on the live side of the supply, suggested to install new 60 amp pole switch, 60 amp capacity to give the office block new 60 amp phase for office capacity, for mainly for heating purposes.

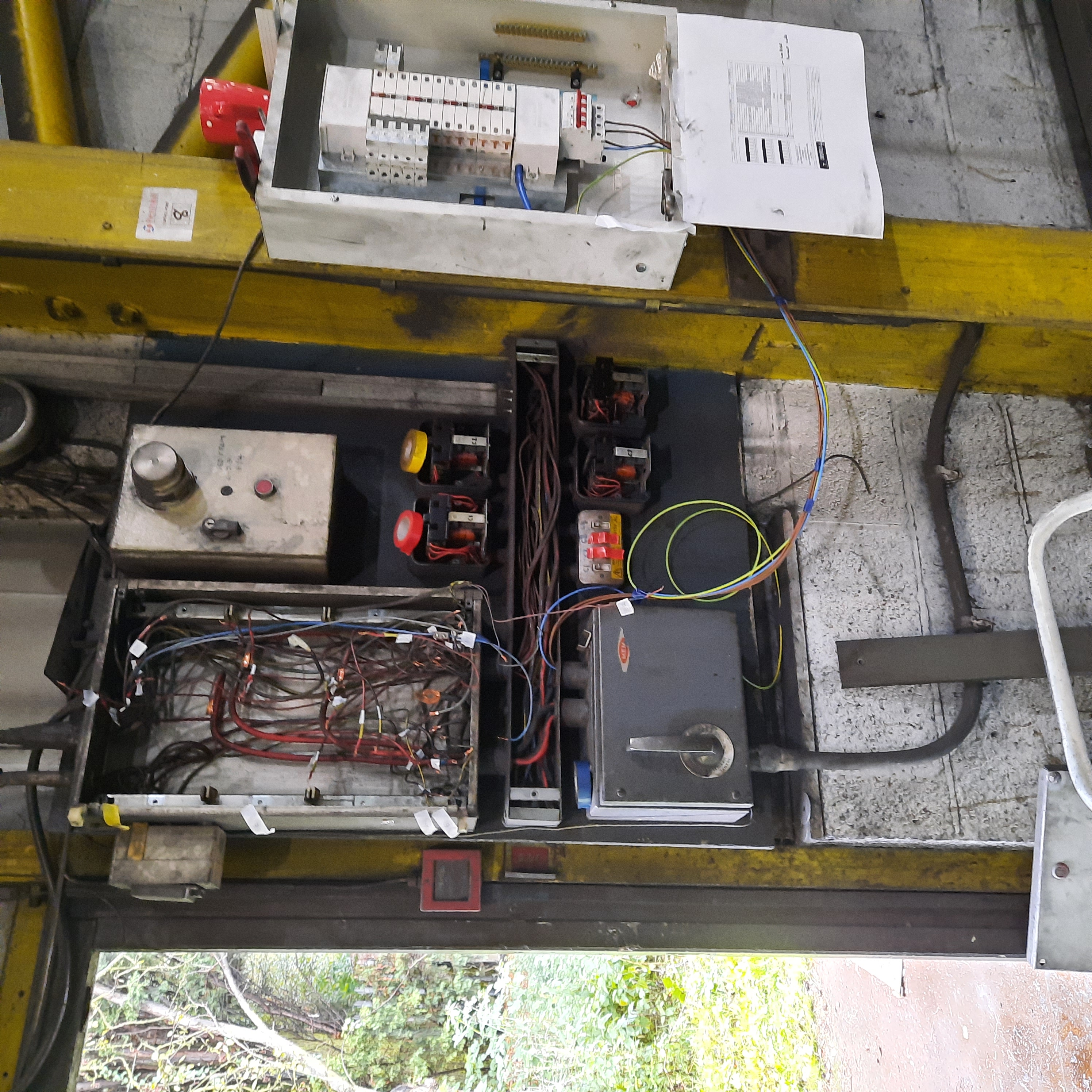

Installed new 6 way modular box which is to hold 6 MCB’s, to resume 2 phases back up to feed the office complex, power resumed. Carried out during working hours.

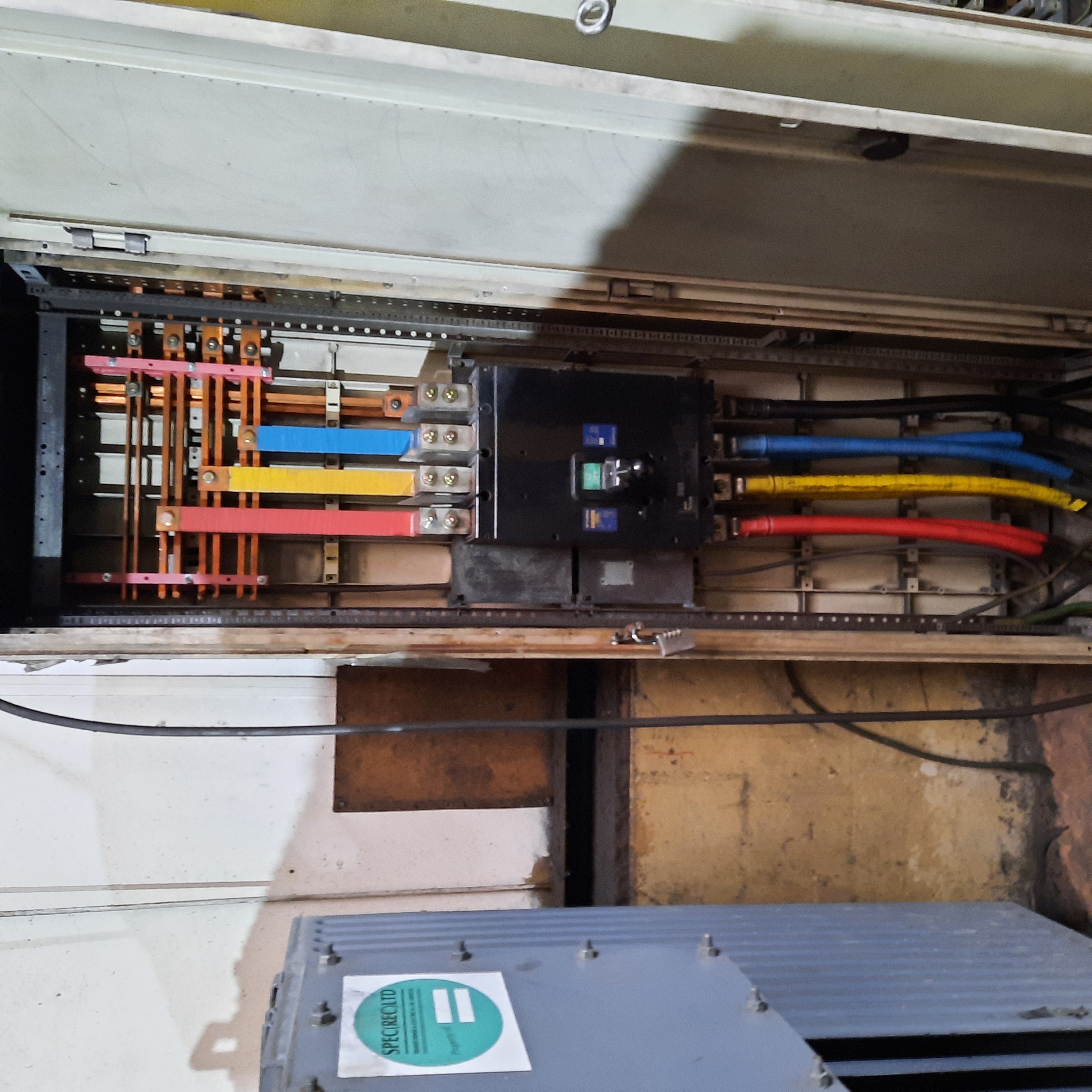

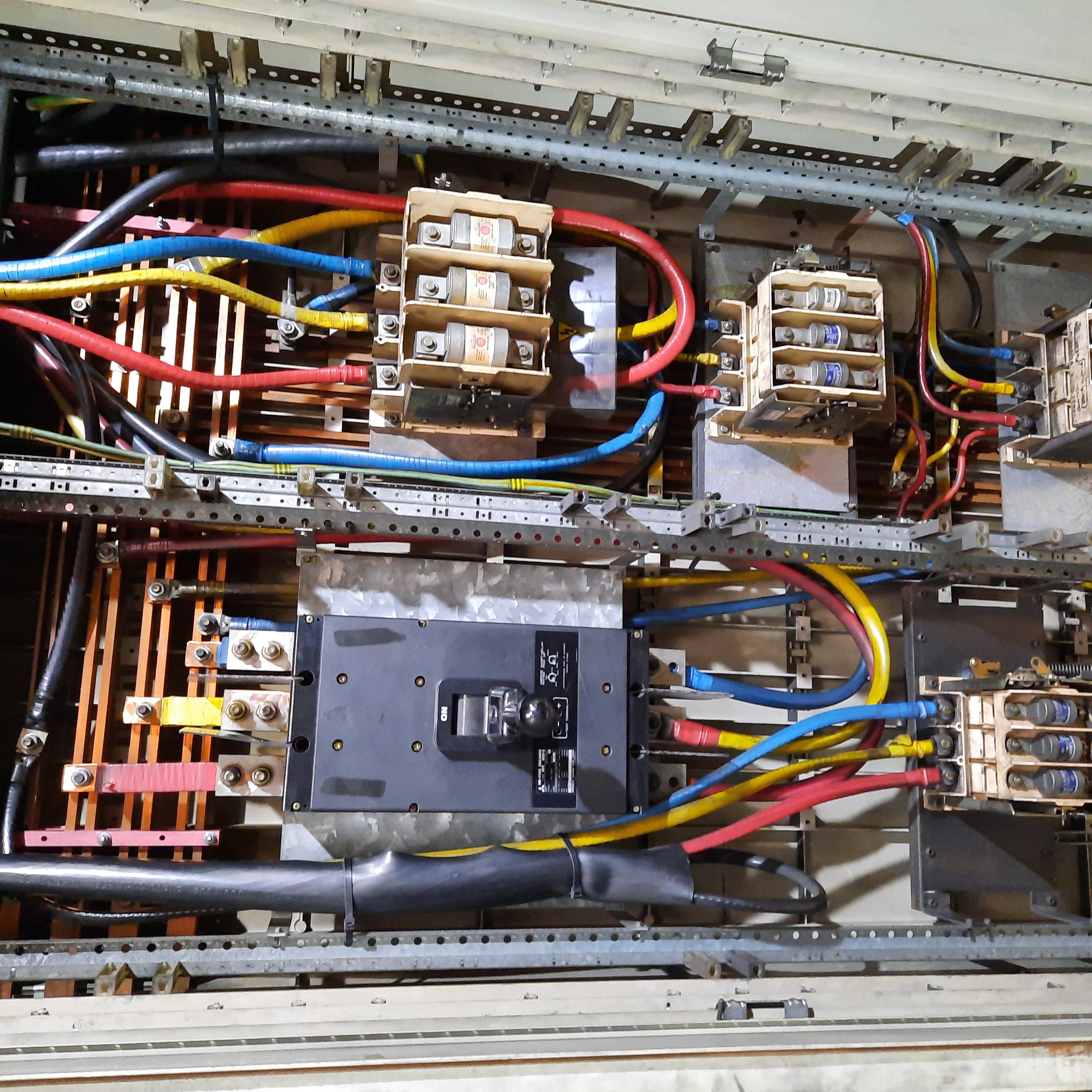

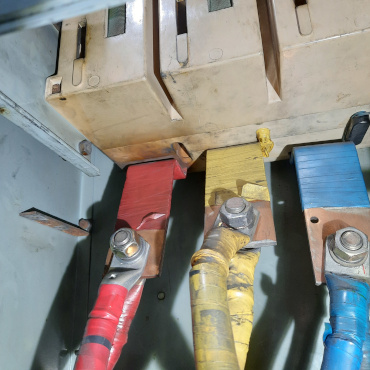

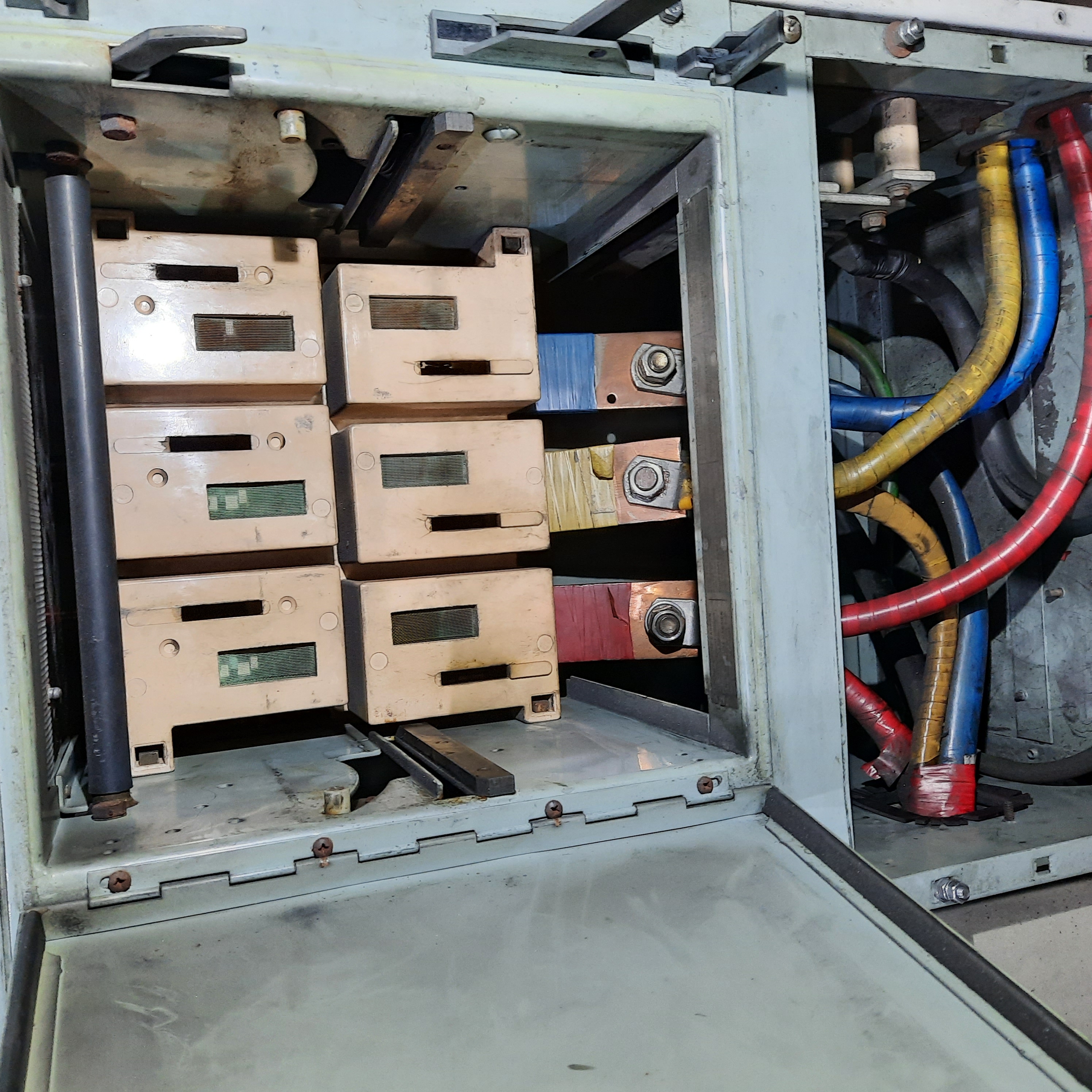

200 amp fuse switch, red & yellow phases on incoming supply, via capacitors have drawn excessive current and cause the red & yellow phases to become overheated which needed new main tails as required, capacitors for power factor correction not working correctly needing further work.

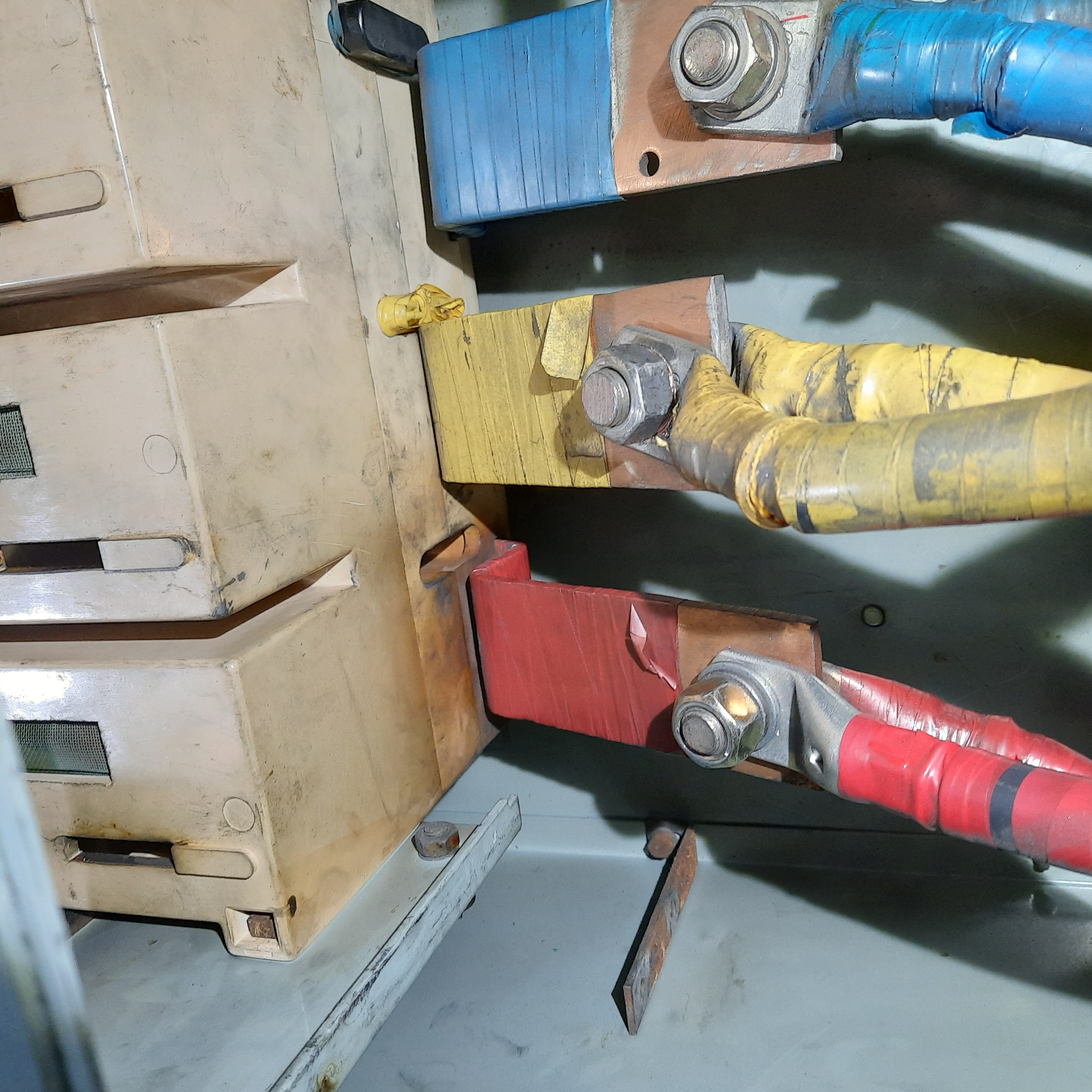

Red phase have new tails and lugs fitted to replace burnt cables.

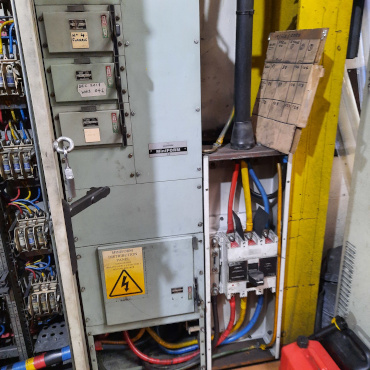

Continued switch gear

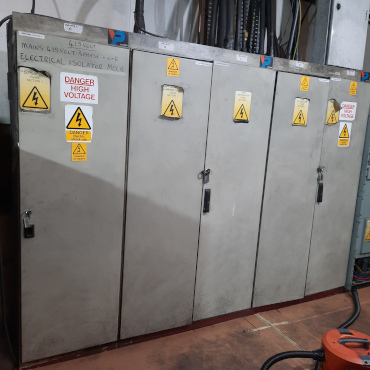

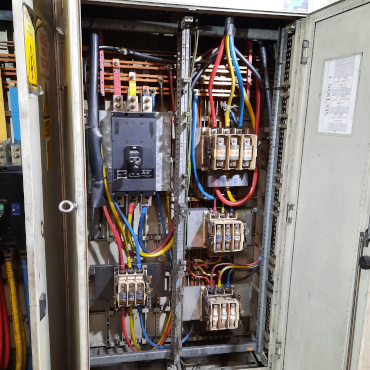

Snapshot of switch gear including capacitor, which we carry out a shutdown on at Christmas time, out of hours and working through the night as required on annual maintenance and safety checks.

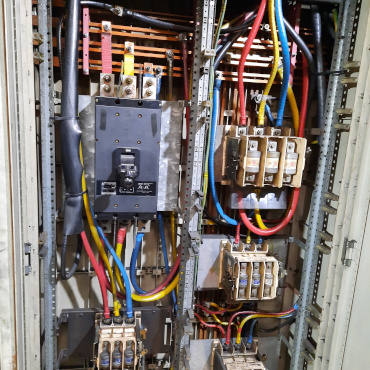

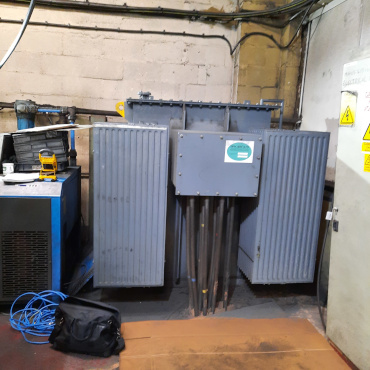

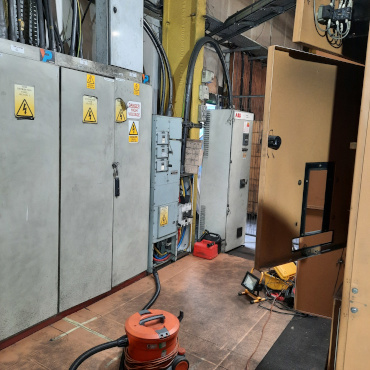

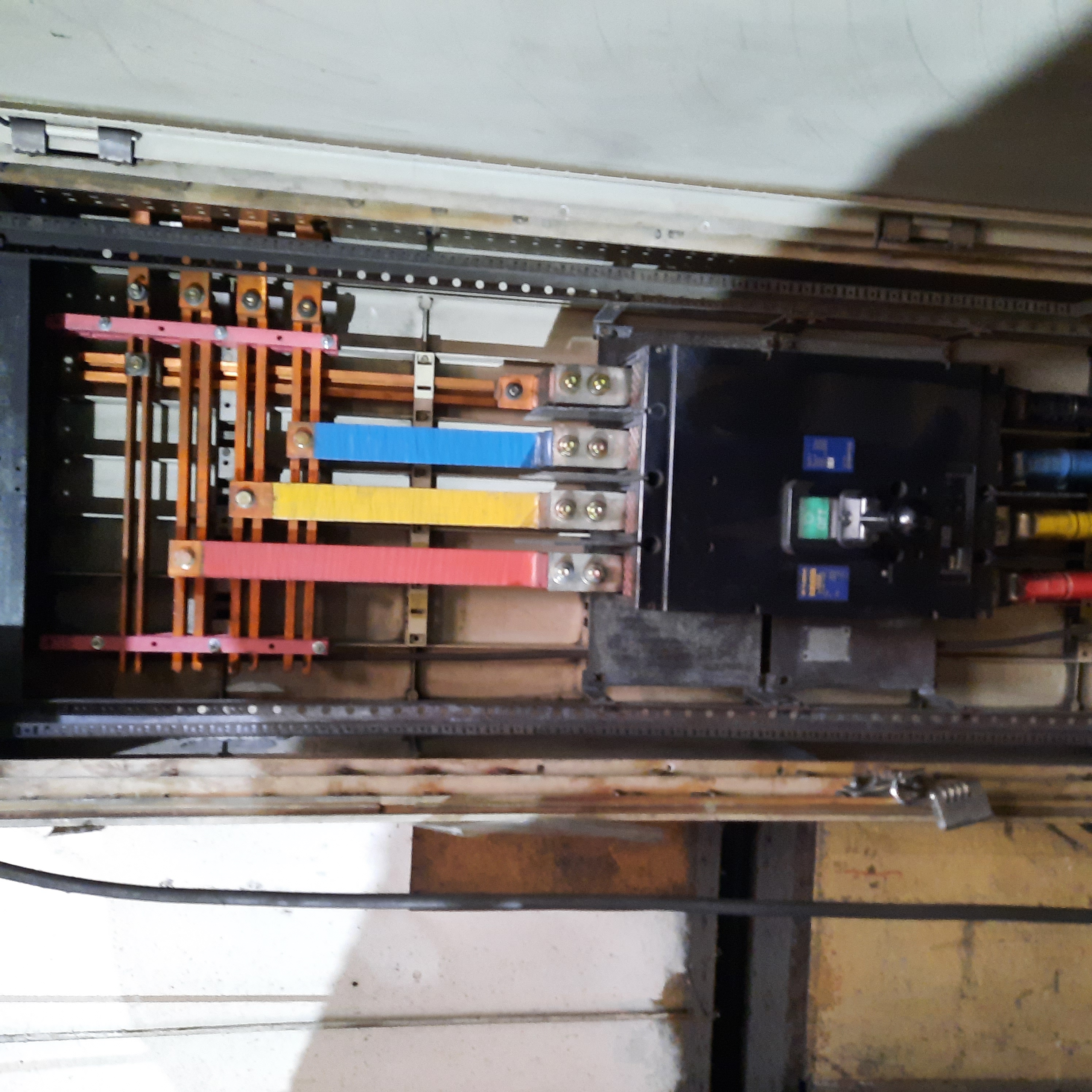

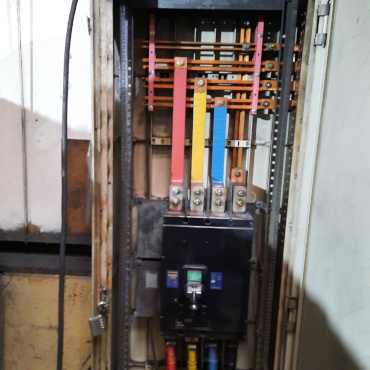

1 sub circuit of 800 amps per phase, feeding one control panel, feeding many sub circuits, work was annual maintenance for safety reasons, all work carried out to NIC / EIC regulations and to the 17th / 18th regulations.

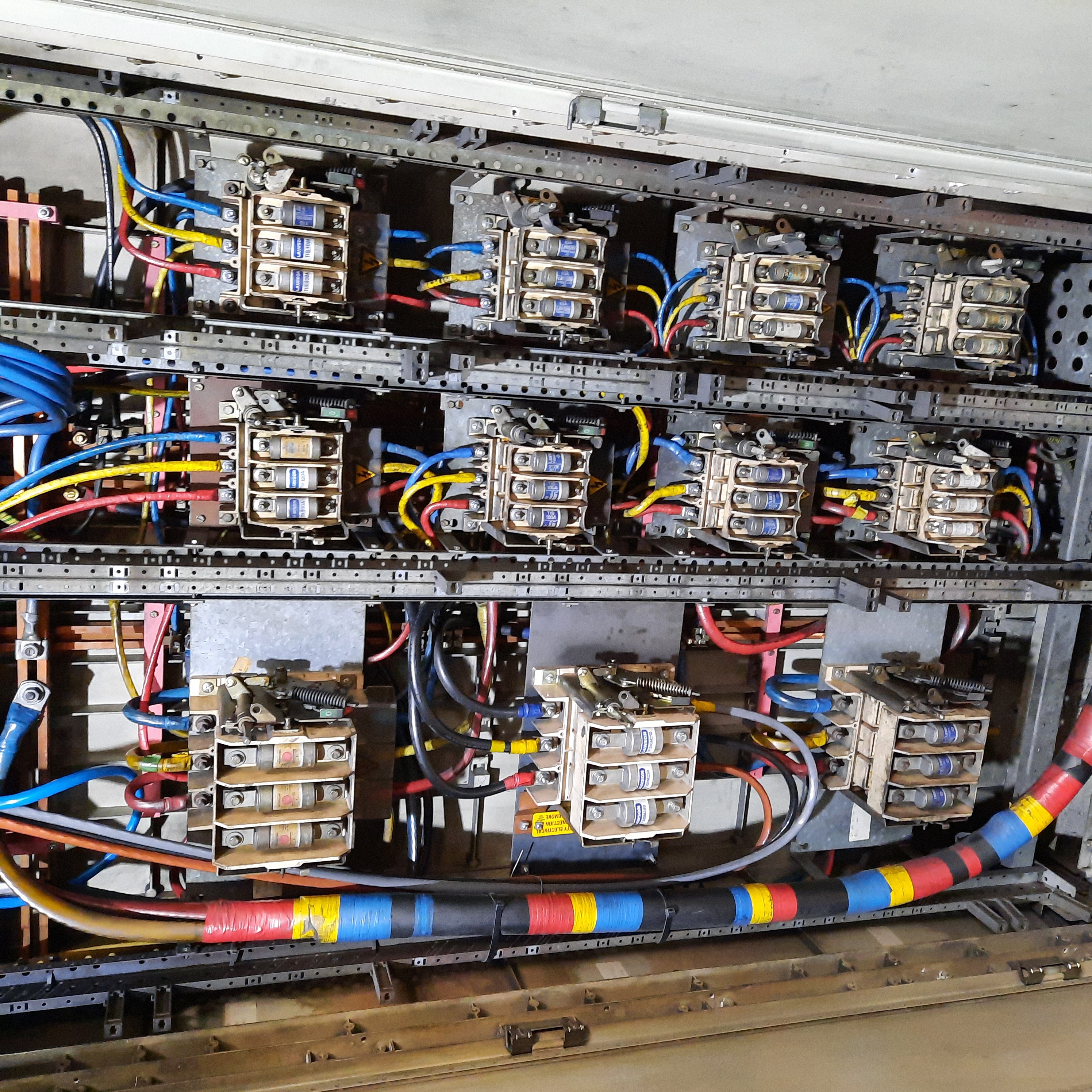

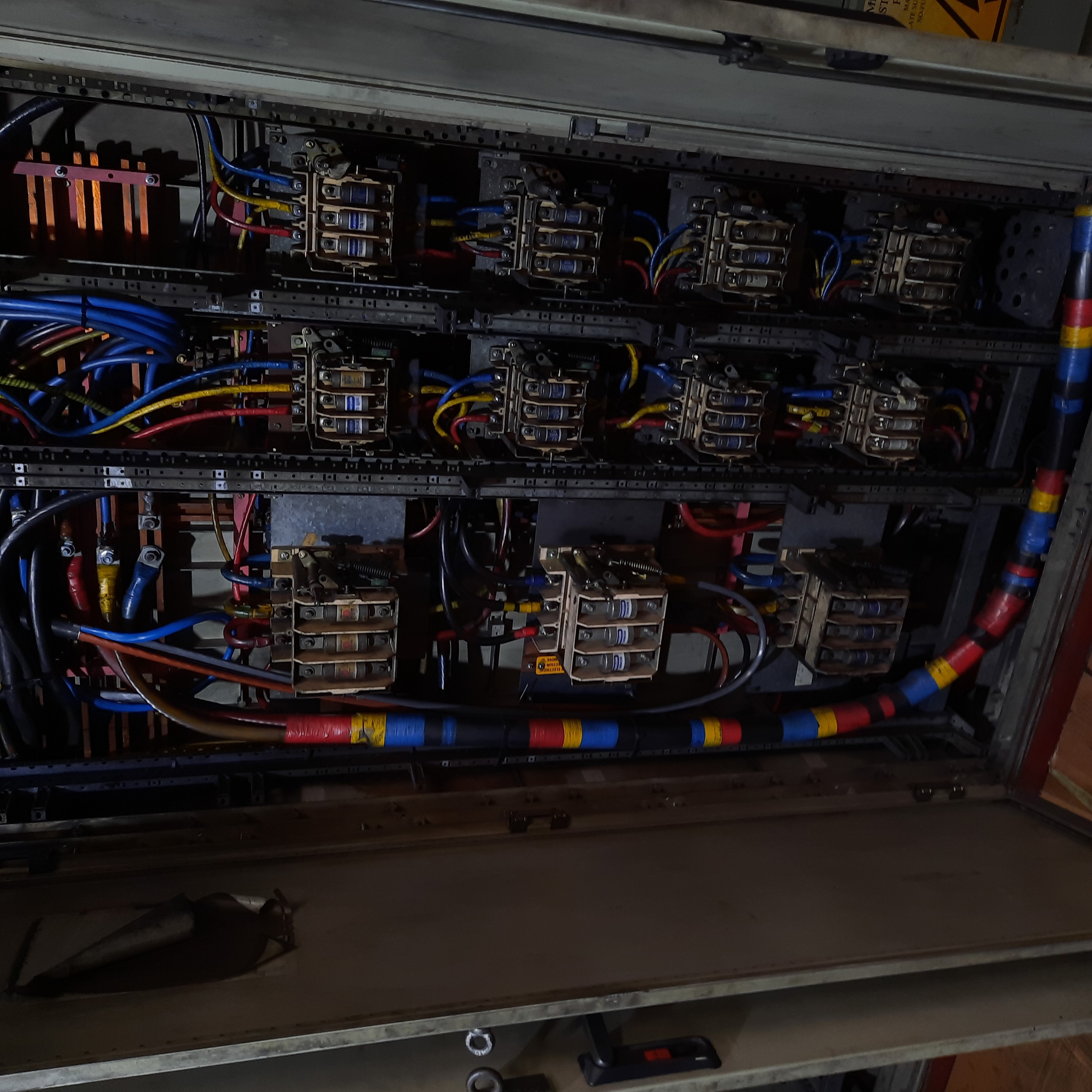

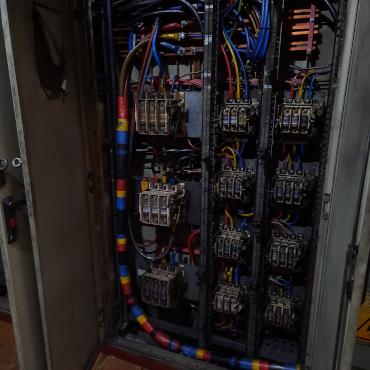

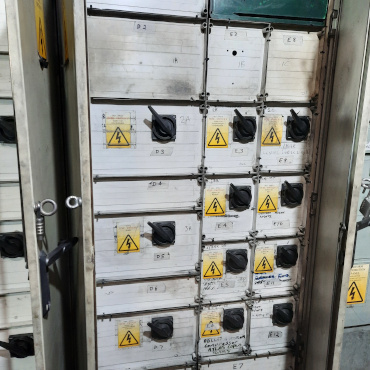

Subcircuits on control panel

Subcircuits

Subcircuits

Mini form control panel feeding 4 sub circuits

ABB capacitor

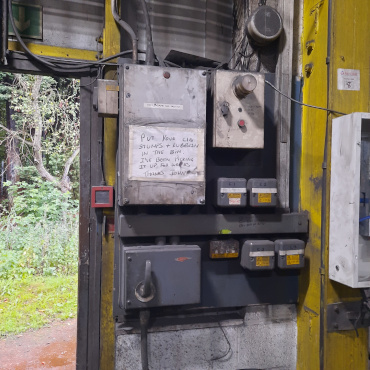

Please note we carry out inspections to NIC / EIC regulations for insurance purposes to comply with regulations and insurance requirements, in this case the old bill fuse board needed upgrading and old dis-used circuits taken out and made safe and upgrading as needed.

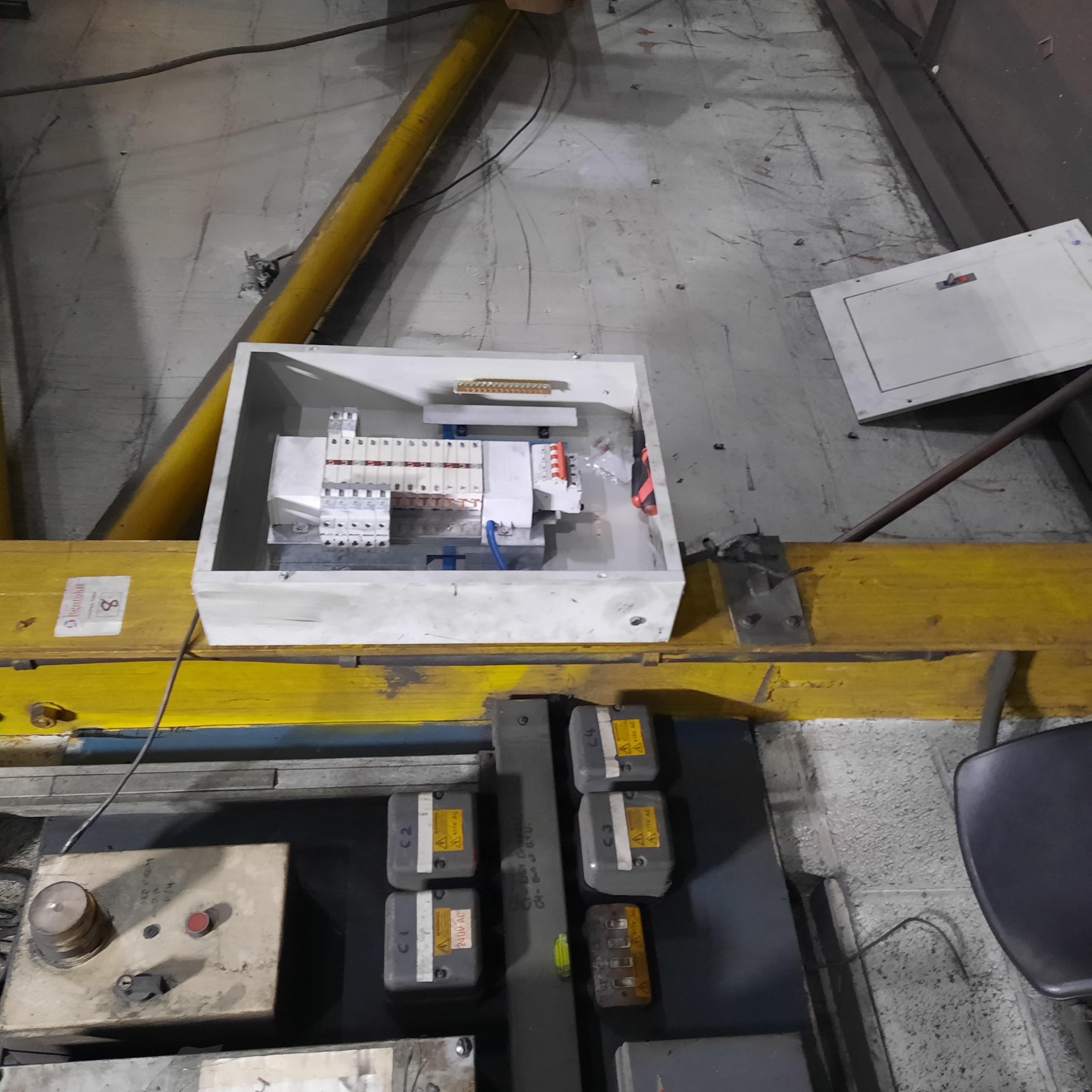

Temporary board installed to maintain machinery running whilst this job was being done i.e. upgrading the board.

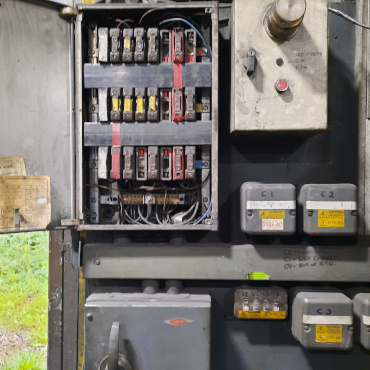

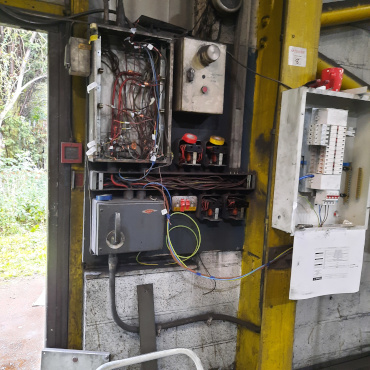

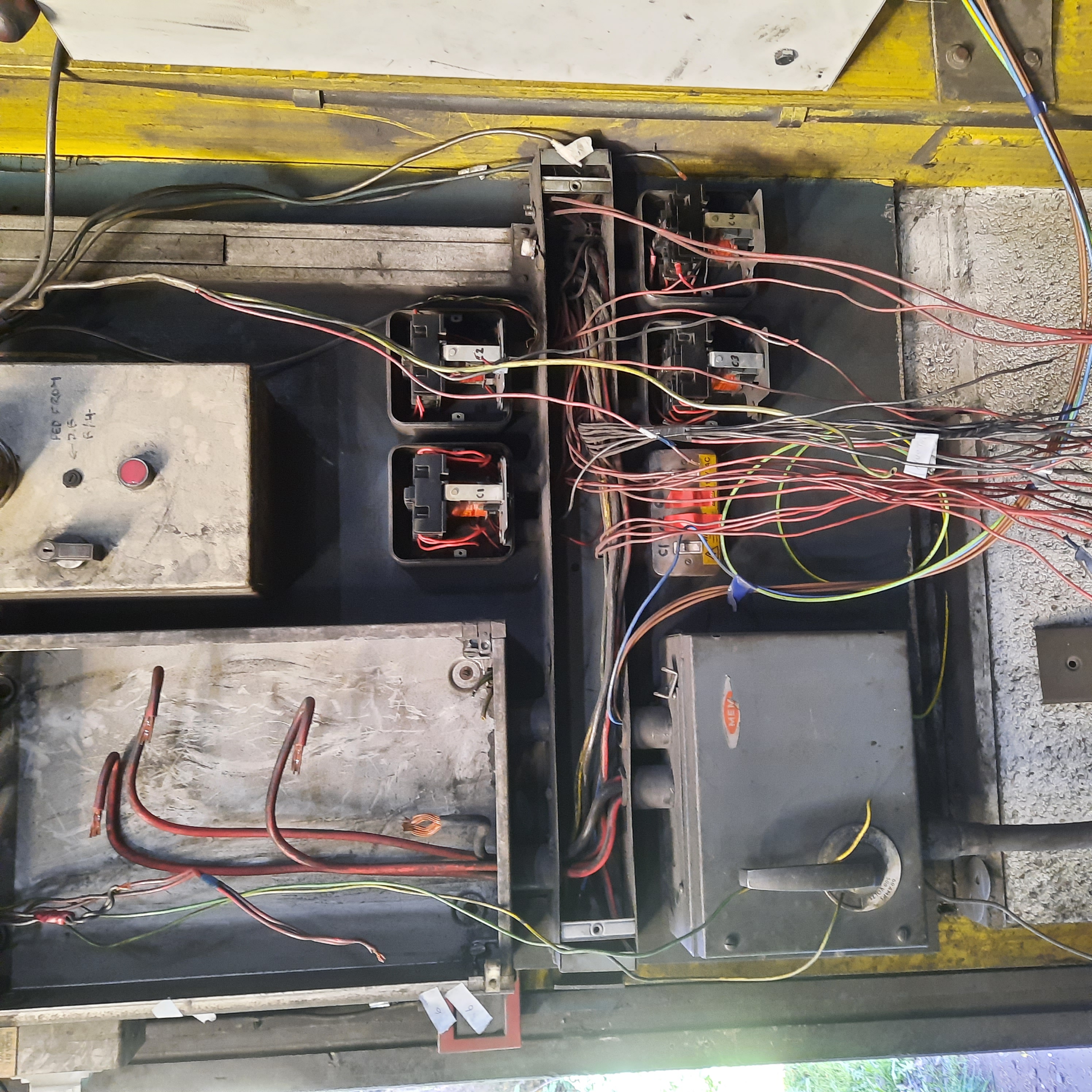

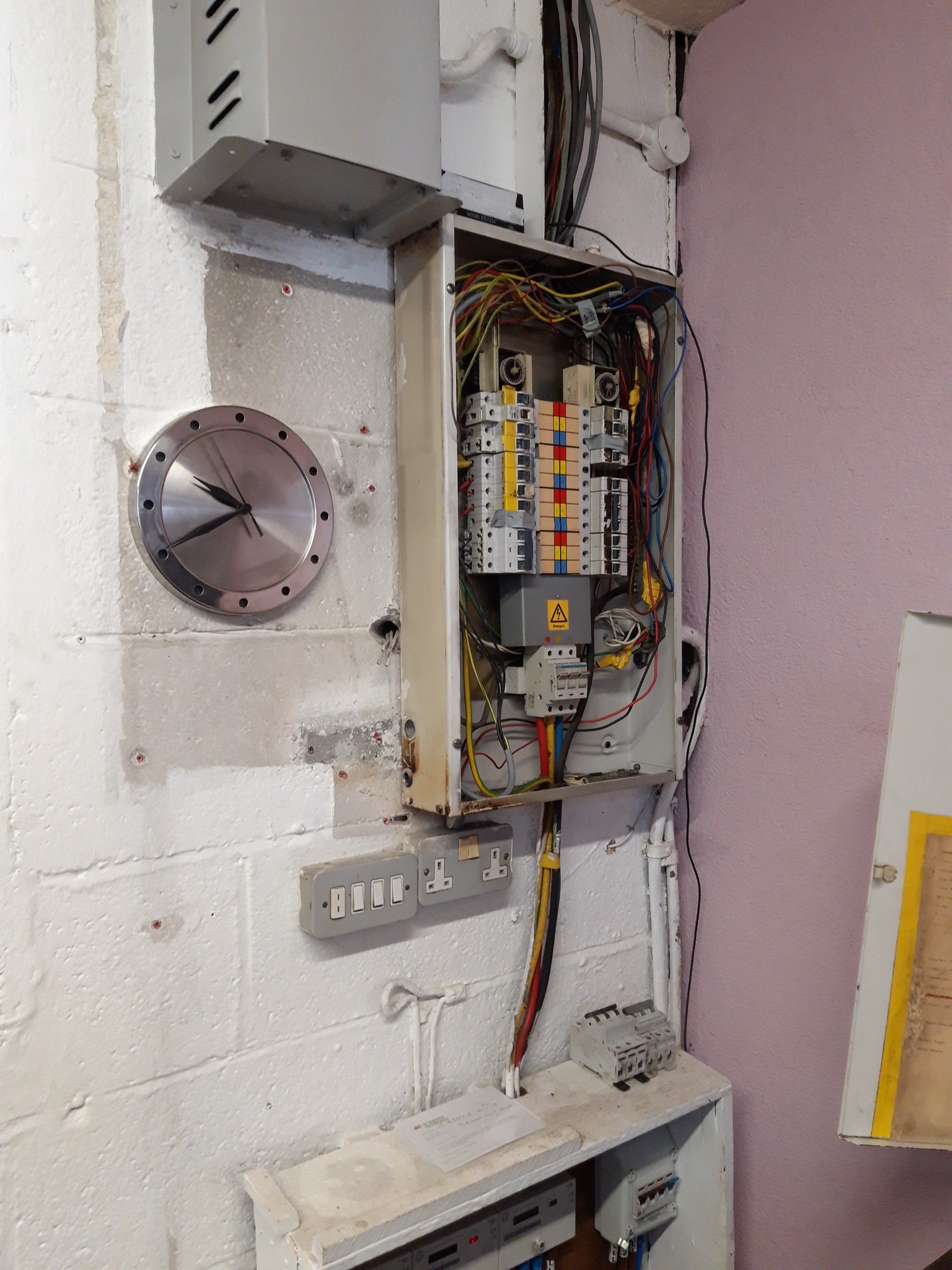

Old bill board disconnected and circuits marked up of circuits requiring reinstallation.

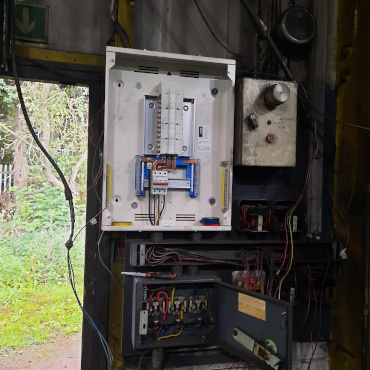

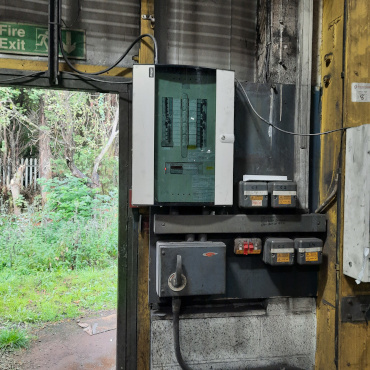

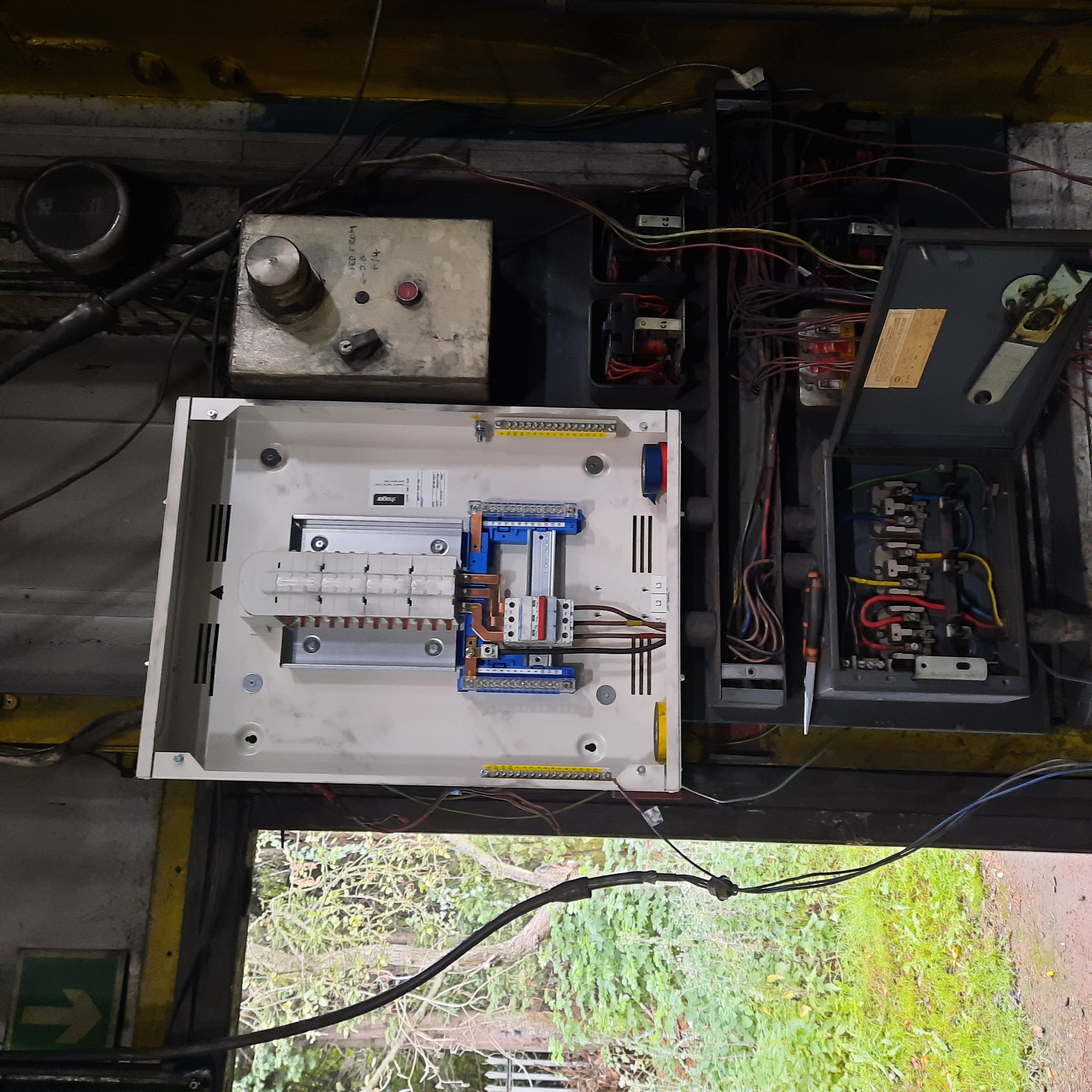

Installed new 3 phase Hager board ready for internal circuits.

Newly installed Hager board with required circuits as needed, excluding old circuits not required. Please note every existing neutral cable needed testing out to match with live conductor and all carried to 18th edition.

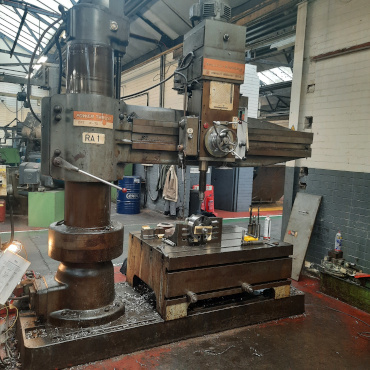

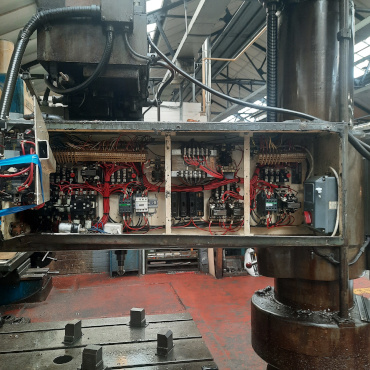

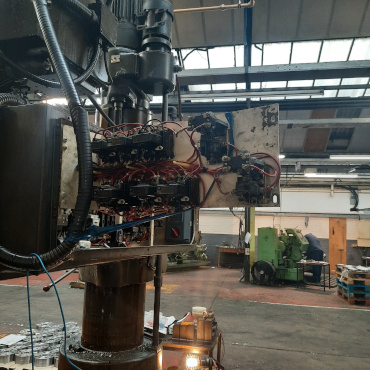

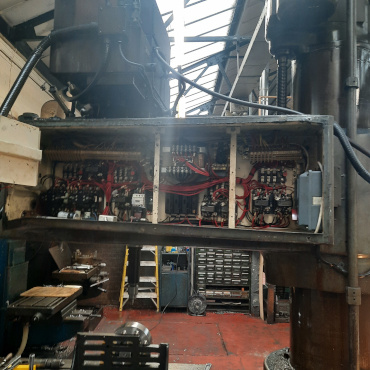

Radial arm drill for well established engineering company has trouble with star delta drive motor to drive drill bit and up traverse and down traverse motor.

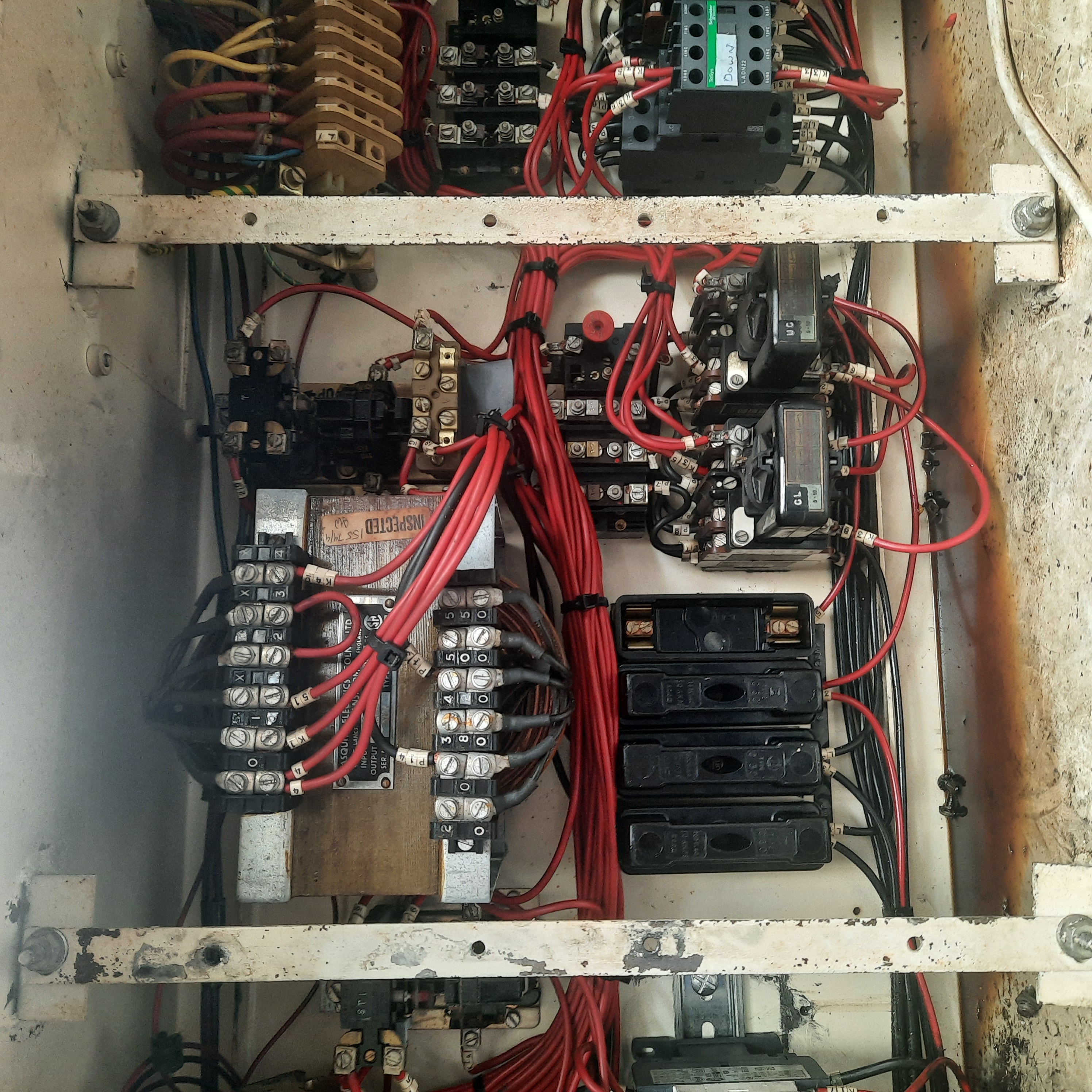

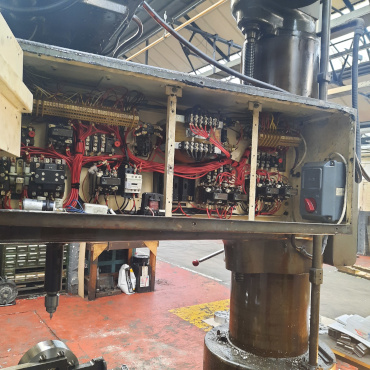

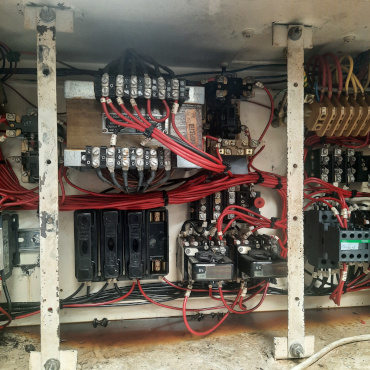

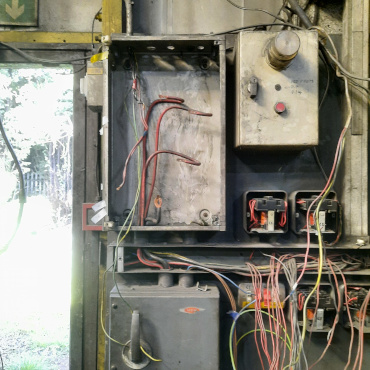

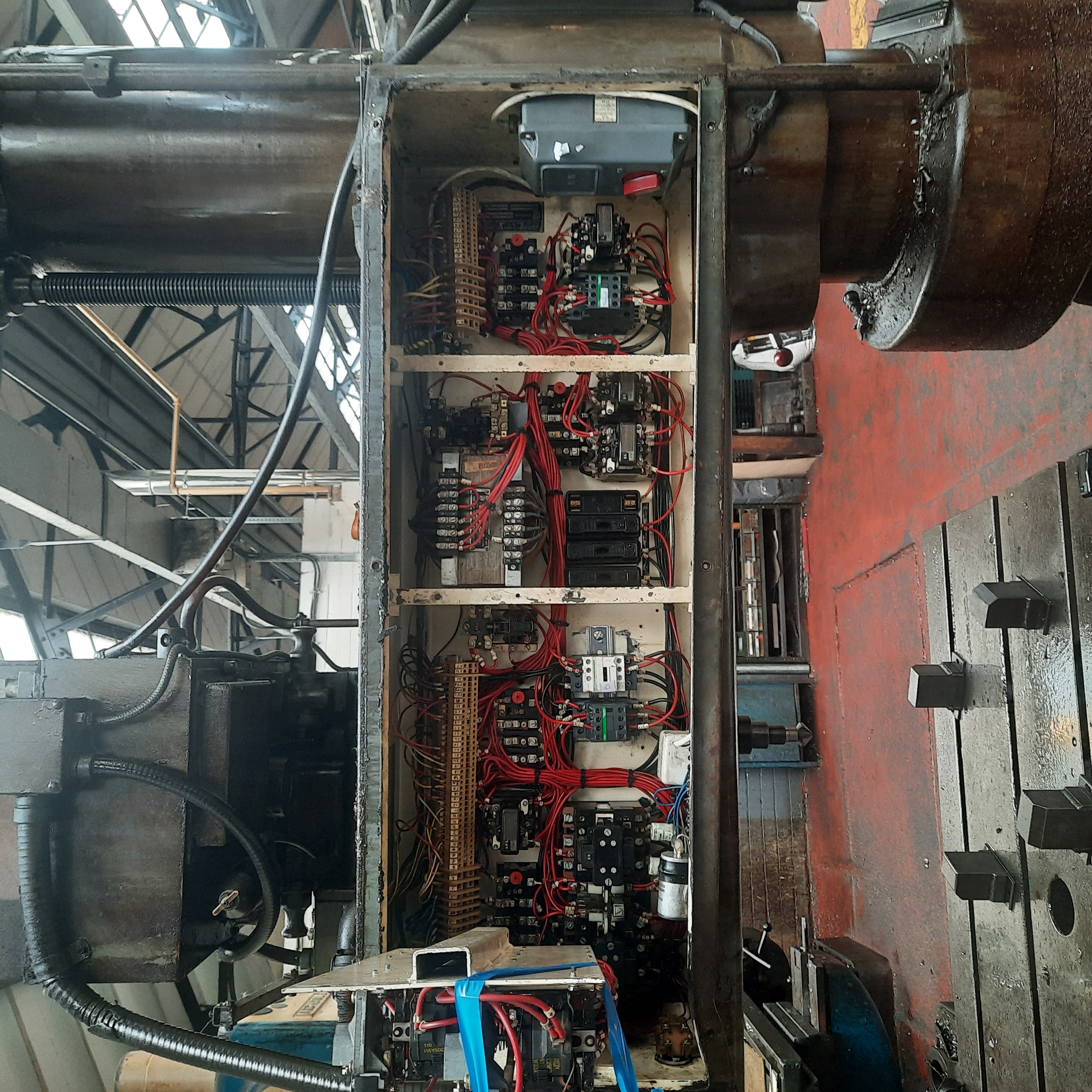

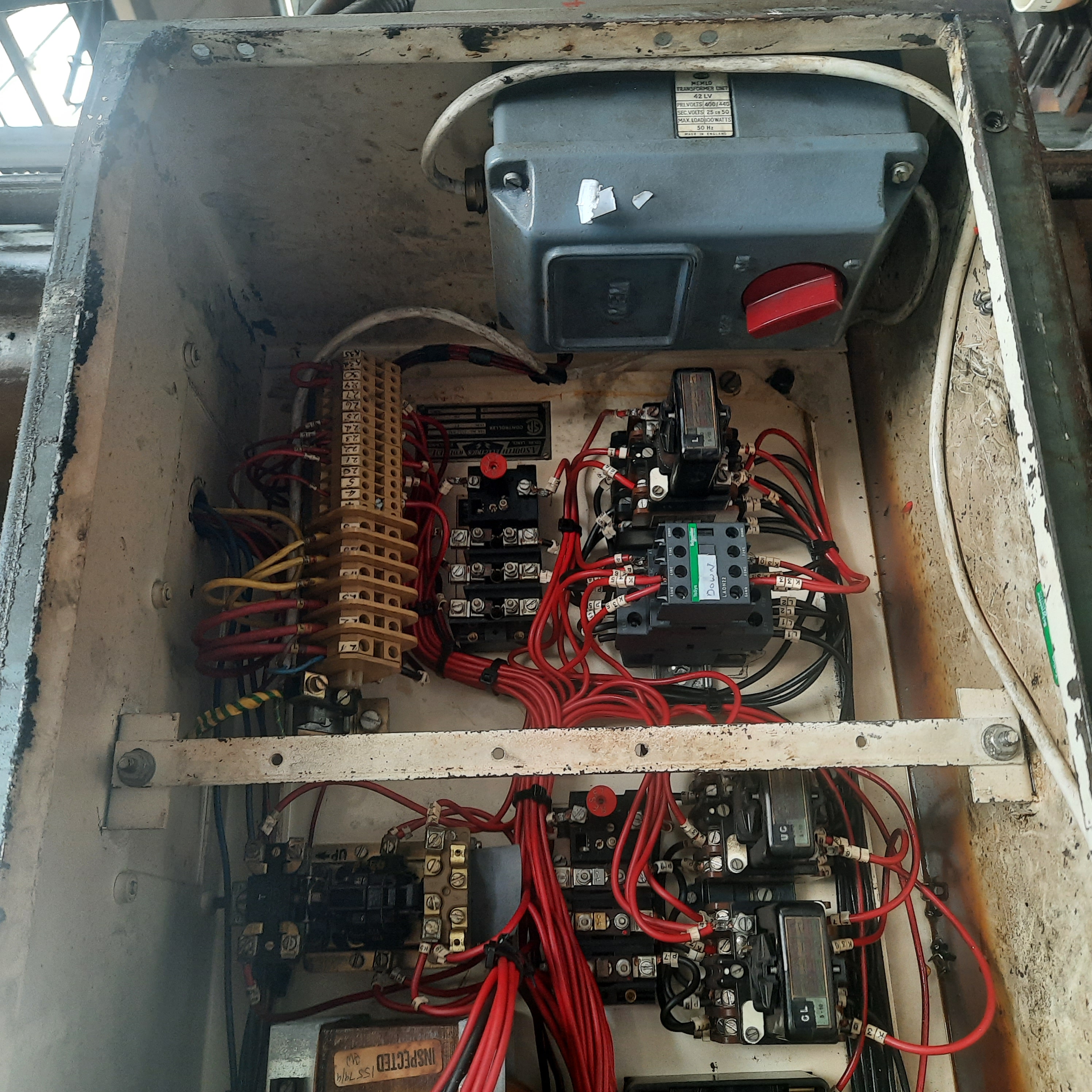

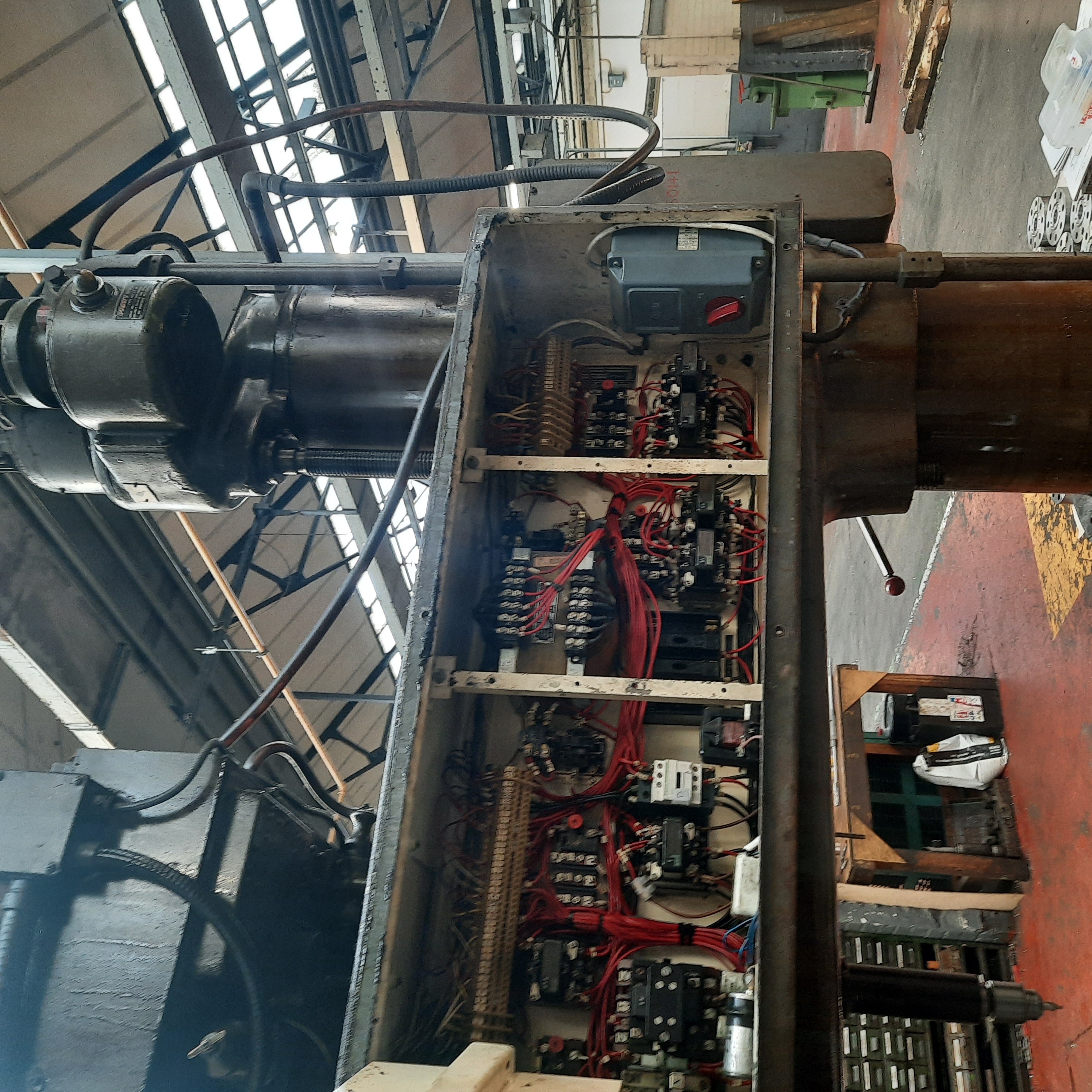

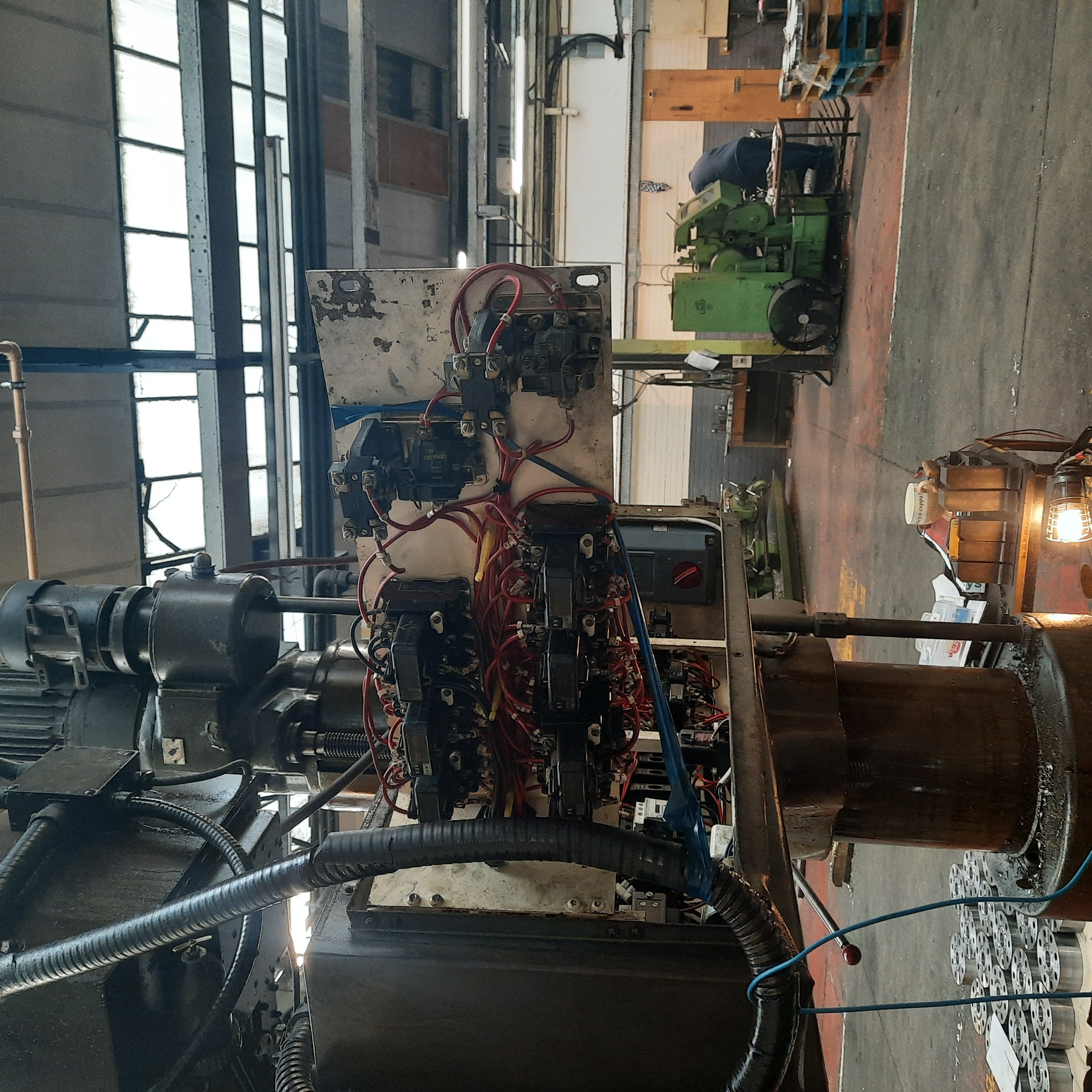

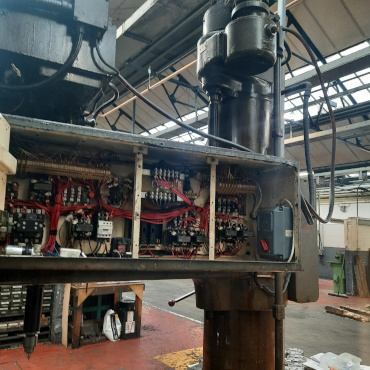

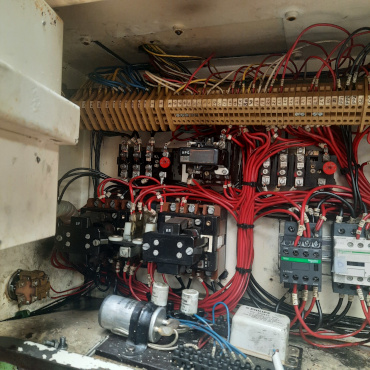

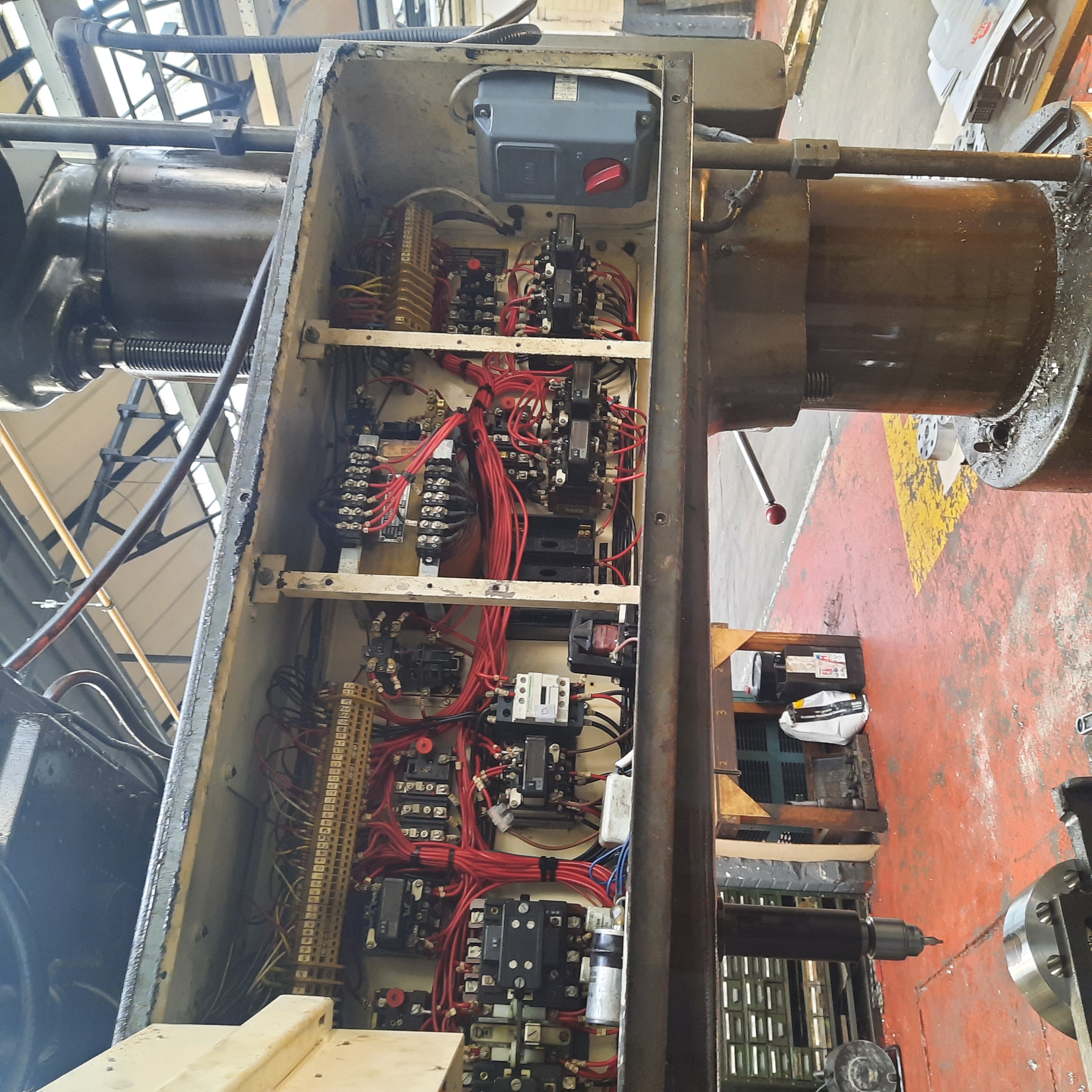

Control equipment for drilling machine.

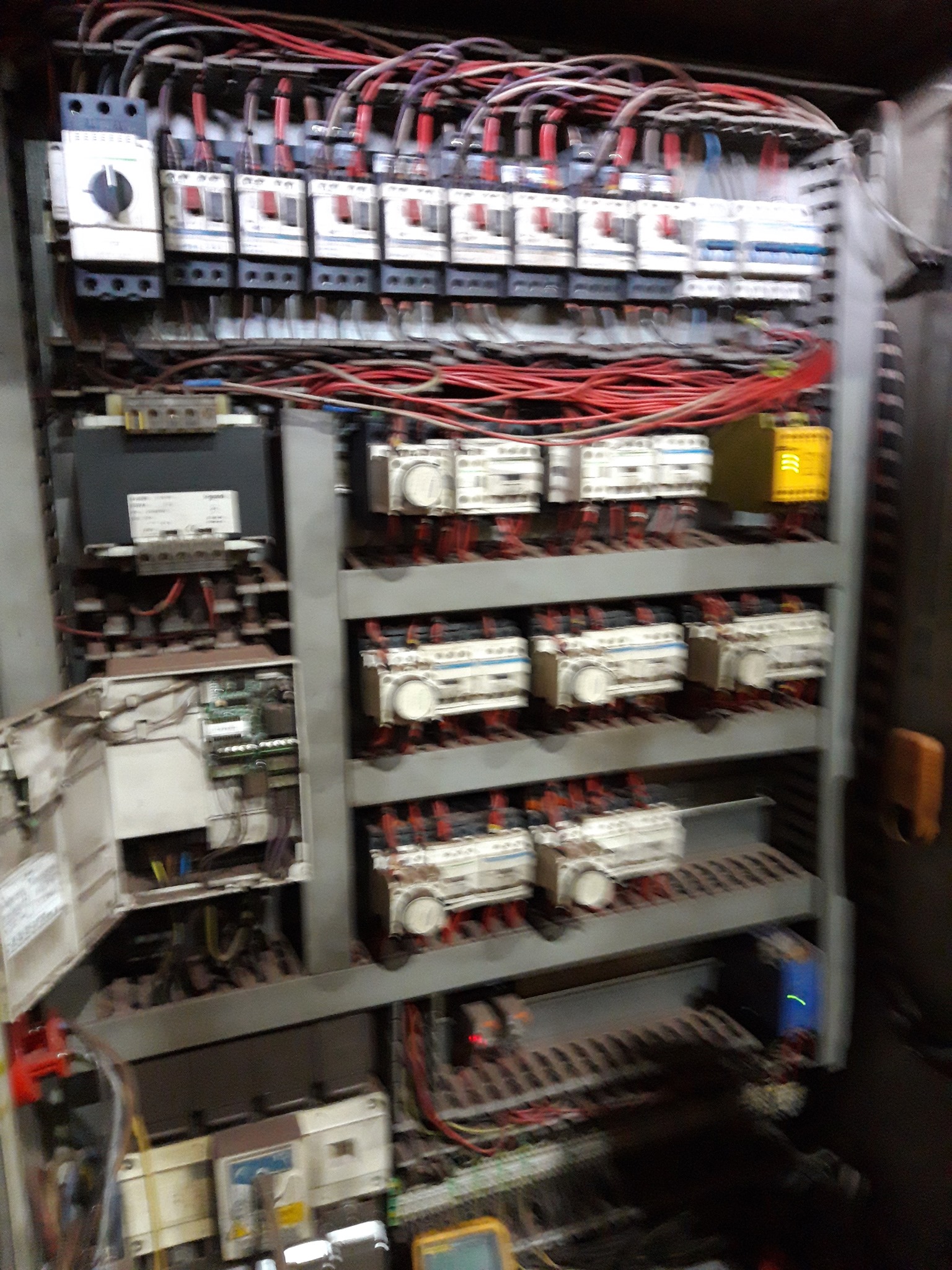

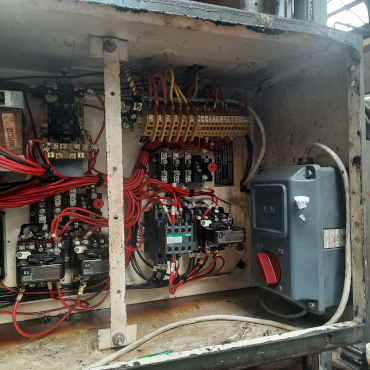

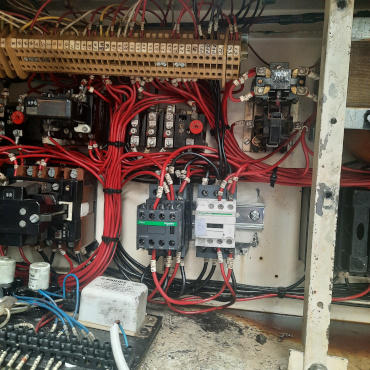

Control equipment. Drive motor for drill won’t start, due to star connection on contactor not closing, new Schneider contactor fitted on star connection only.

As previous, please note new white Schneider contactor fitted.

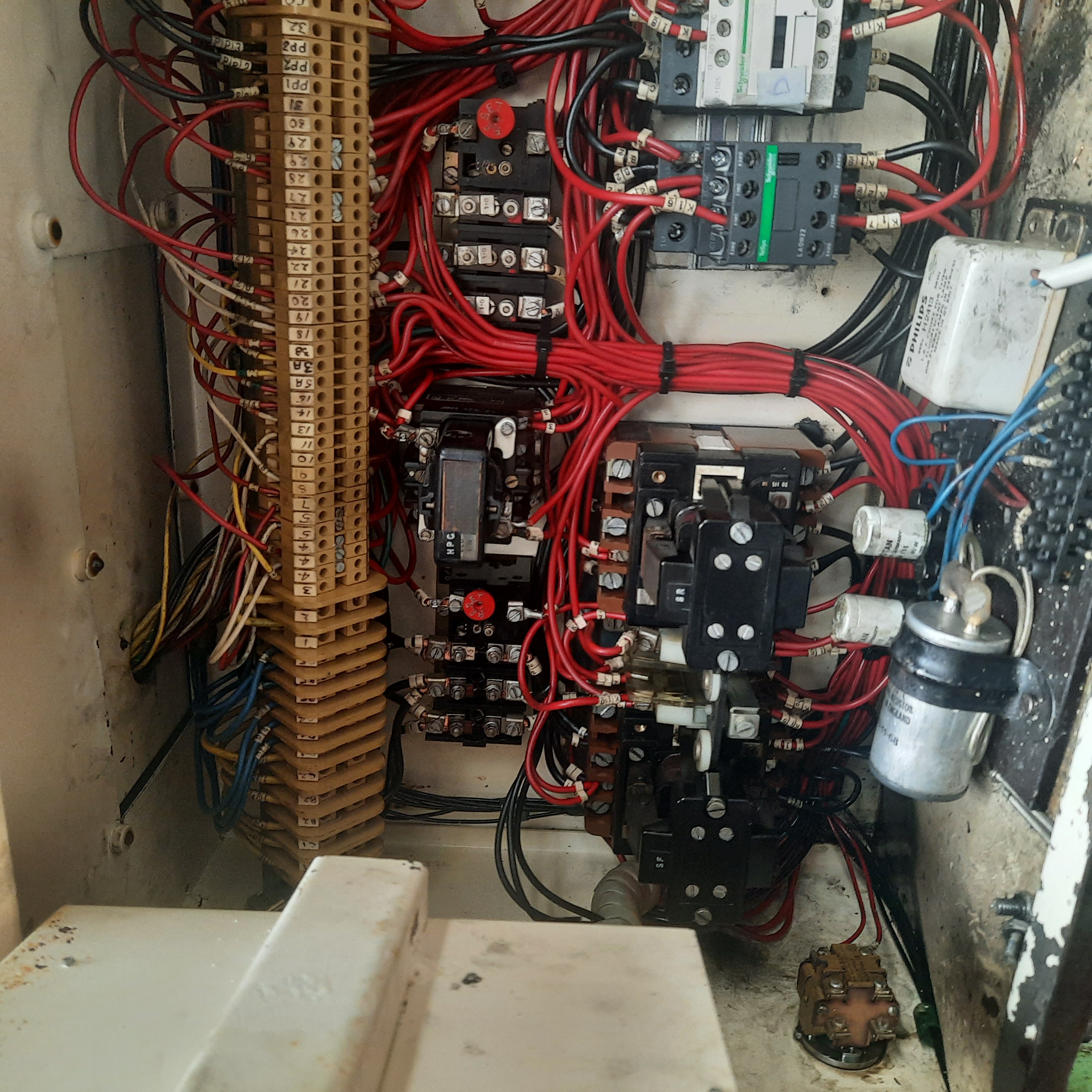

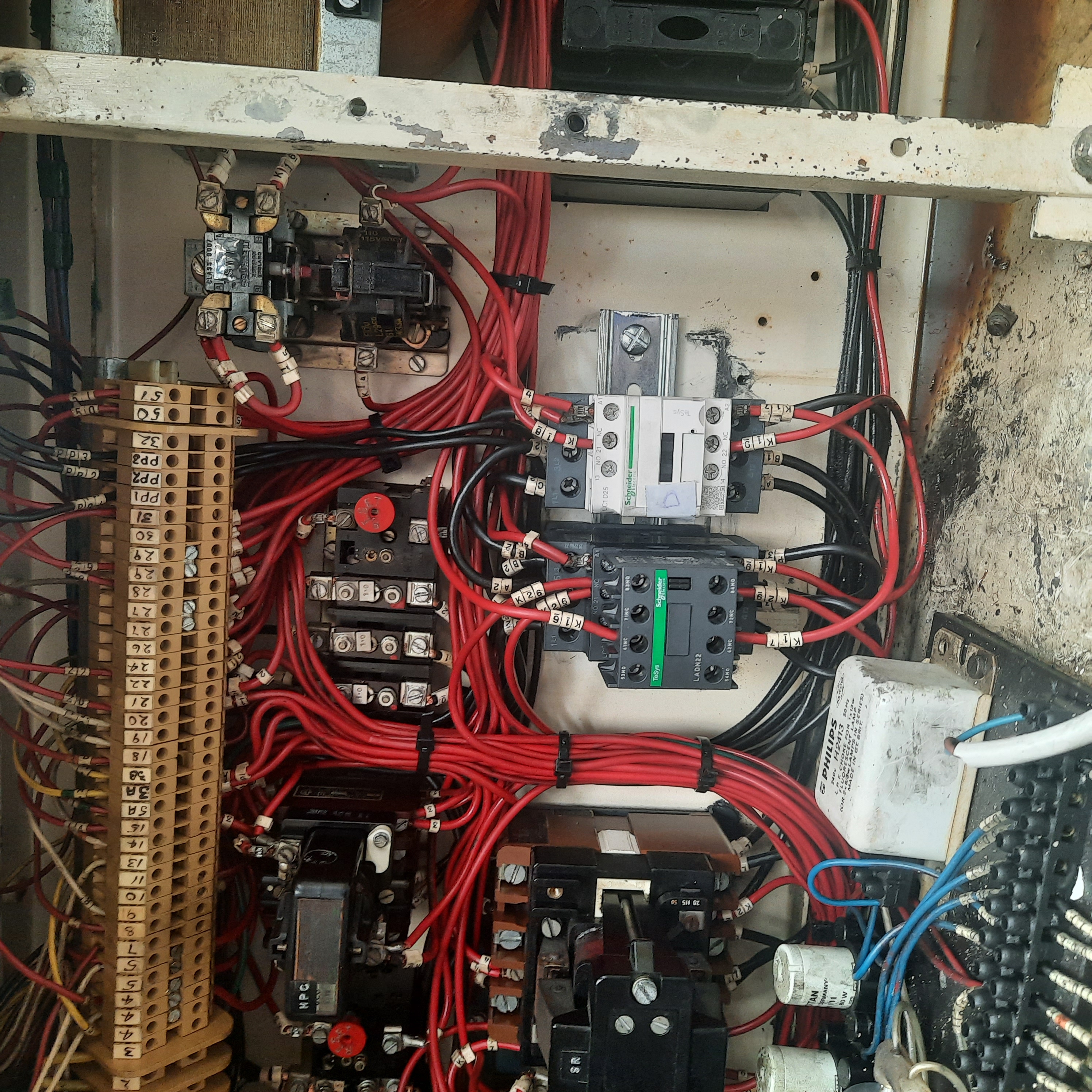

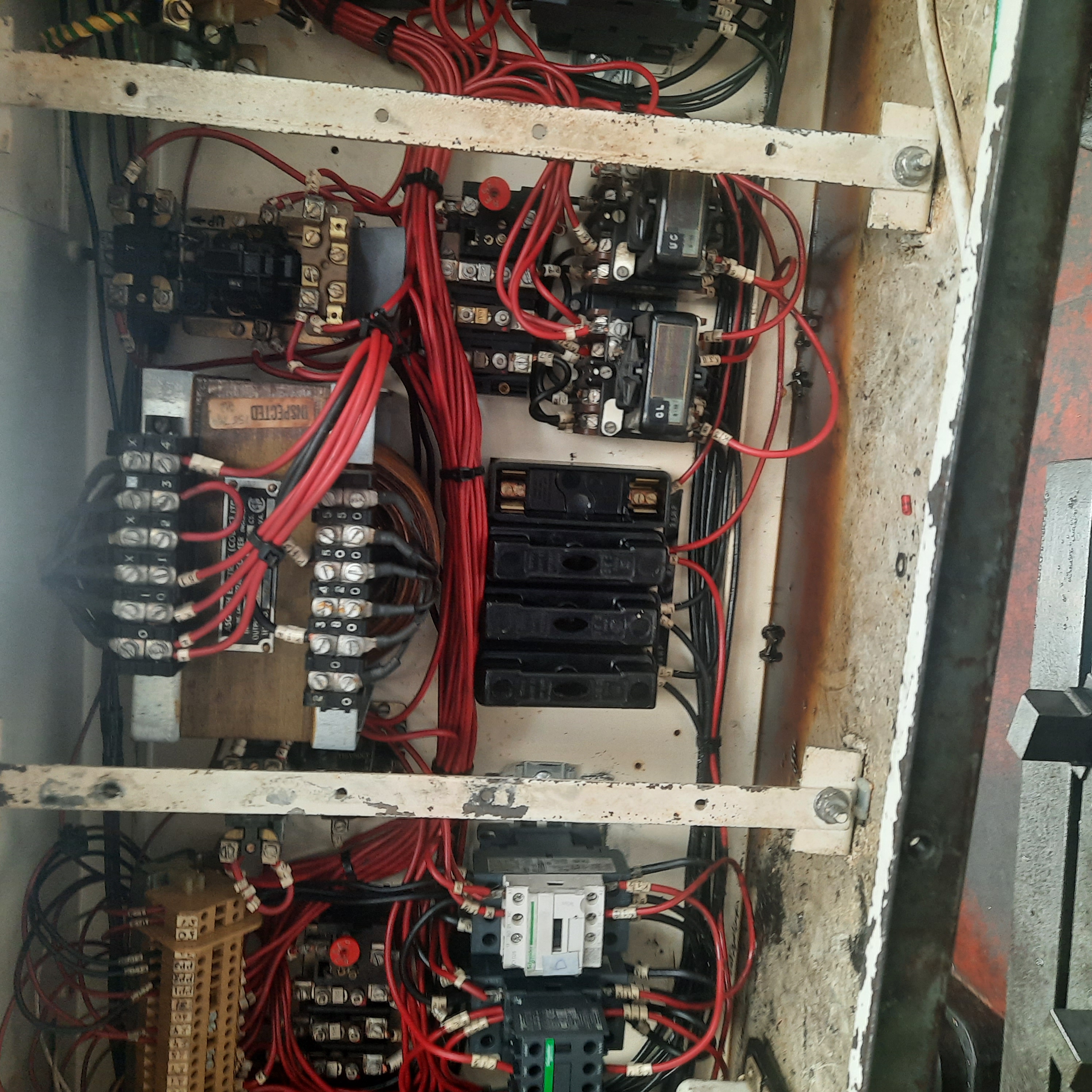

Continuation on radial arm drill, still won’t start properly so number 2 contactor fitted on run side of circuit for the star delta motor, the installation of din rail was required to mount contactors on to.

Shown on the left of the drawing is forward & reverse contactors for star delta motor.

Same, radial arm drill, up traverse and down traverse not working properly so therefore new contactor fitted because of intermitting contact points on contactor on right hand side of panel.

Show existing contactor on the right with the L on it for lowering only.

Existing contactor
